Checking a Model or Selected Components

  • Updated

In the Checking view, you have two options for checking: Check Model (the whole model) and Check Selected (the current Selection Basket content).

Note

If you use Check Model, you can subsequently filter the results with the Selection Basket tools. If you use Check Selected, only results will be provided for the elements in the Selection Basket.

Checking a Model

To check the entire model:

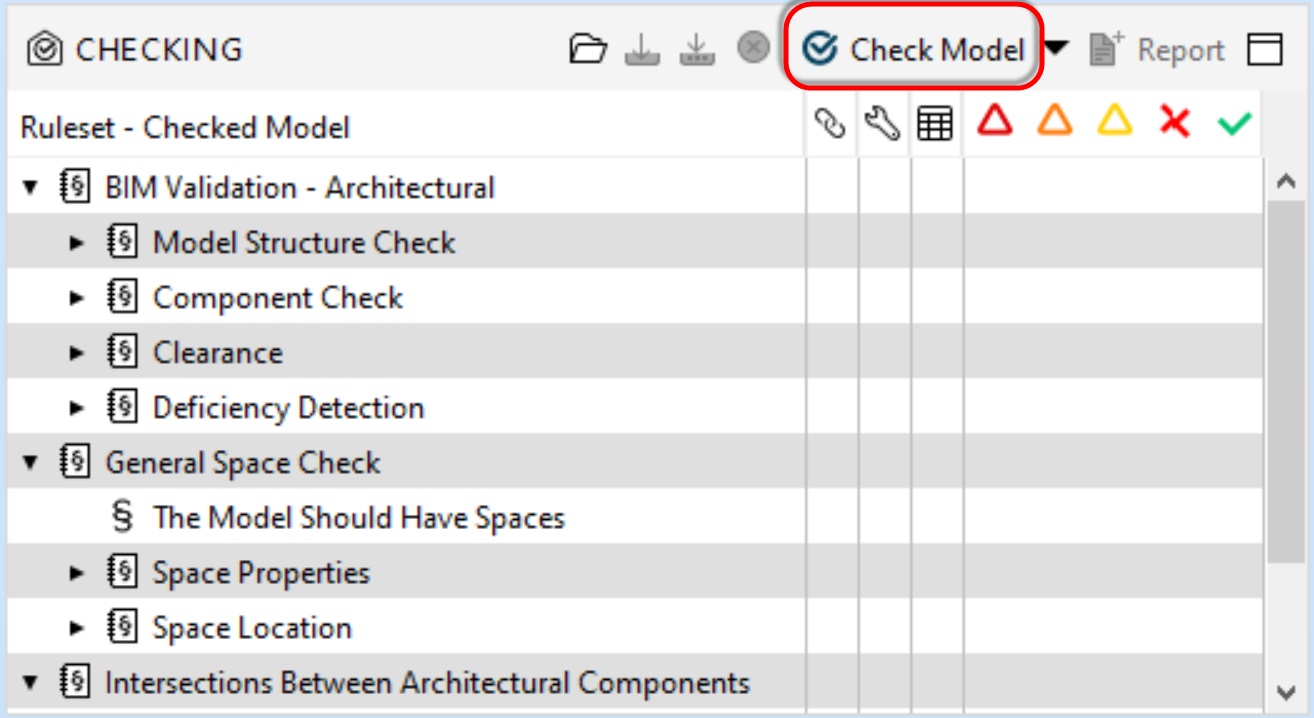

  1. Click Check Model:

    check_model

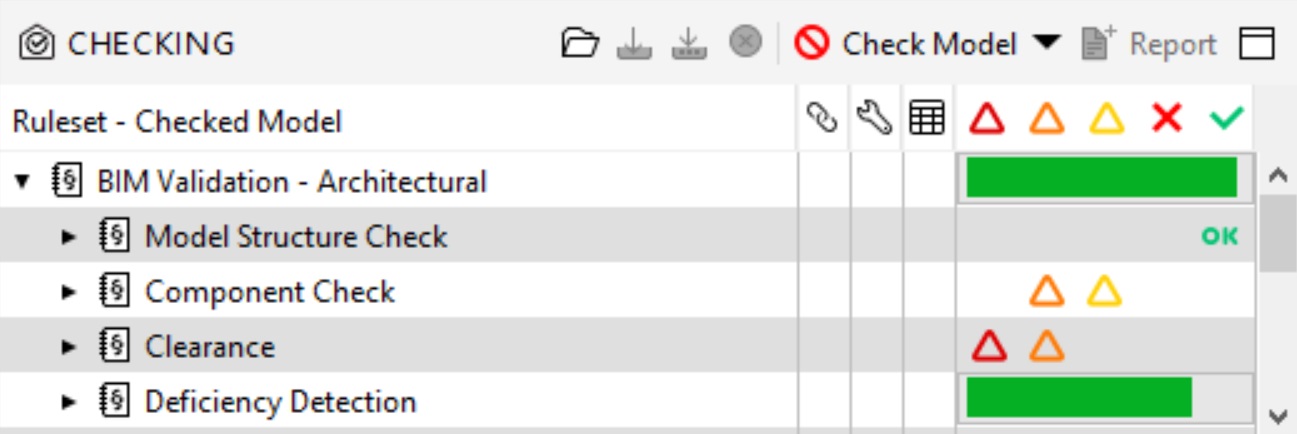

  2. The progression and status of checking are shown in the Checking view:

    checking_process

  3. The checking results are marked with symbols indicating the status of each rule.

Checking Selected Components

You can check parts of the model by adding components to the Selection Basket and then checking only the selected components. In this way, you can focus on specific areas in the building that require detailed attention. The checking results will show only results related to the selected components.

Tip

To view the content of the Selection Basket, add the Selection Basket view to the Checking layout.

To check the selected components:

  1. Add the components to the Selection Basket.

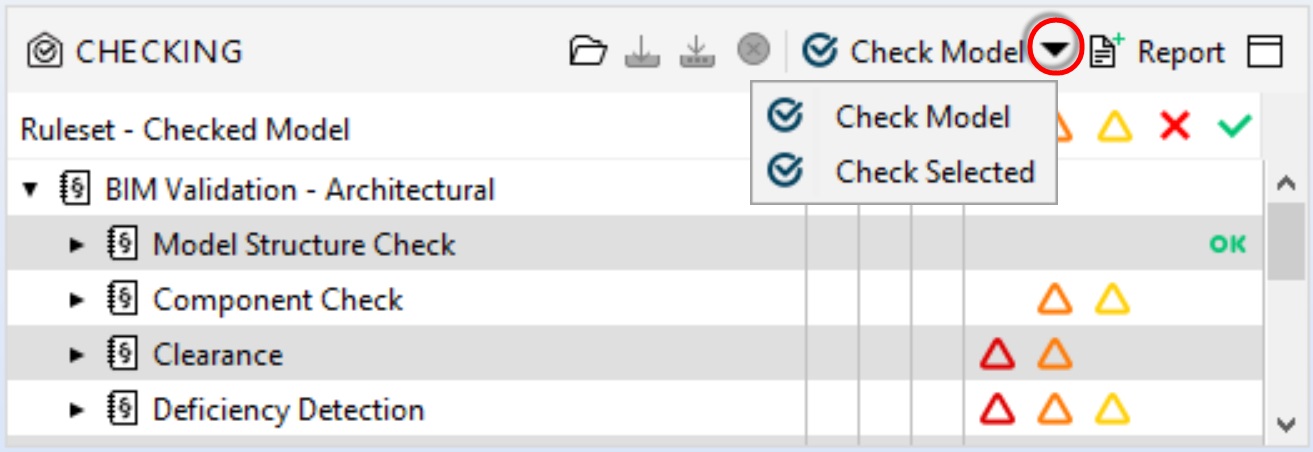

  2. Select Check Selected:

    checking_checkselected

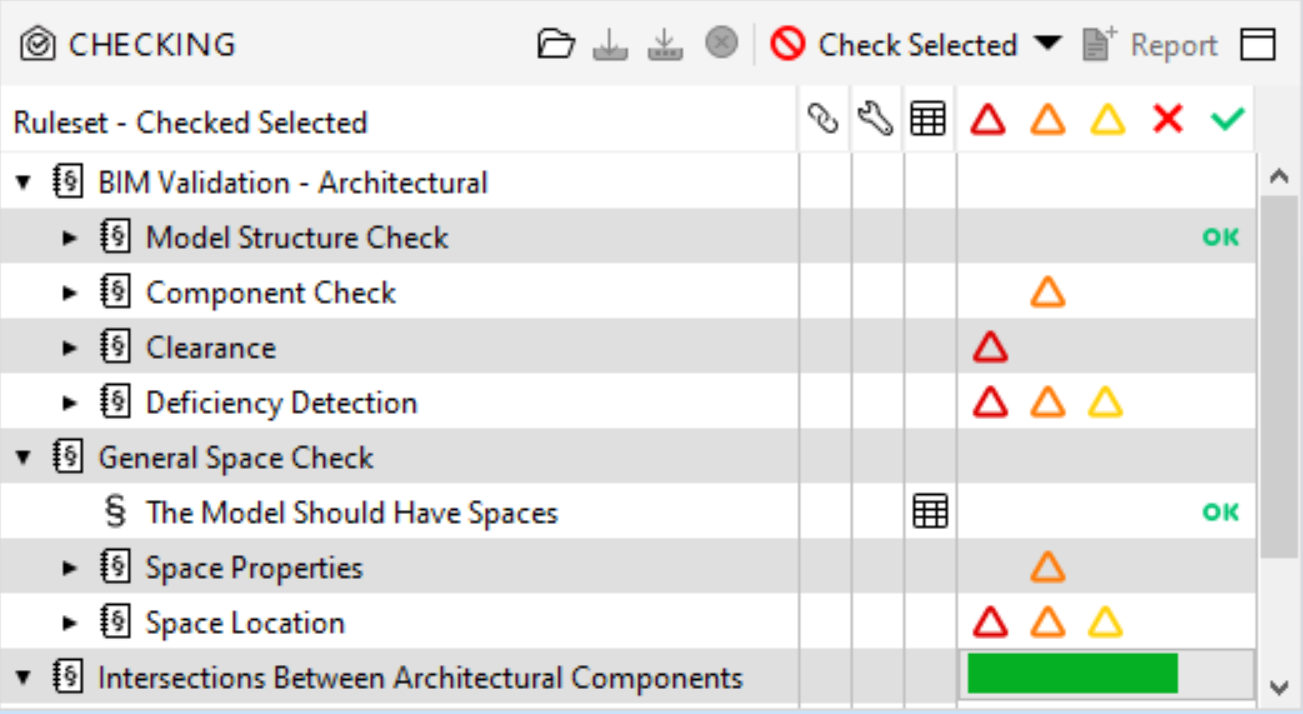

  3. The progression and status of checking are shown in the Checking view:


  4. The checking results are marked with symbols indicating the status of each rule.

    For details, see Viewing Checking Results.
