This article describes the different options available for controlling how the model components are displayed when viewing checking results.
To isolate and understand what components are involved with each result in the Results view, you have three options for visualization: Automatic, Transparent and No Visualization. For rule results, the issue components are by default shown automatically with their associated footprint (hyperlink).

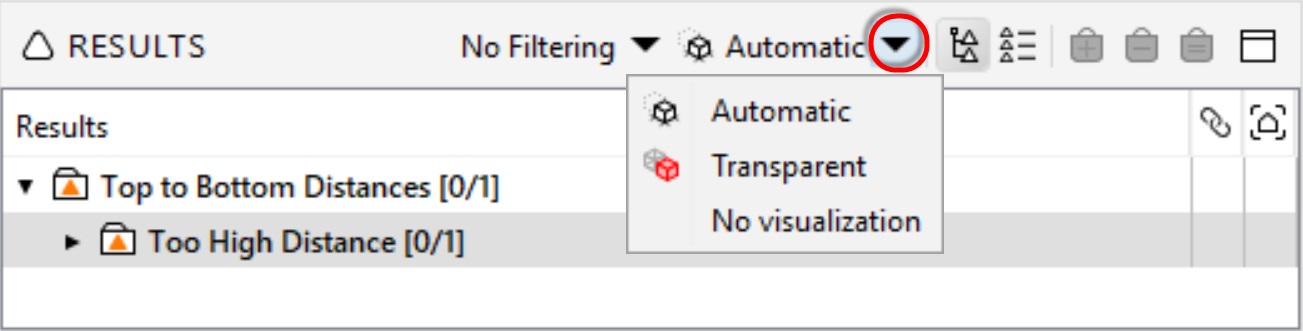

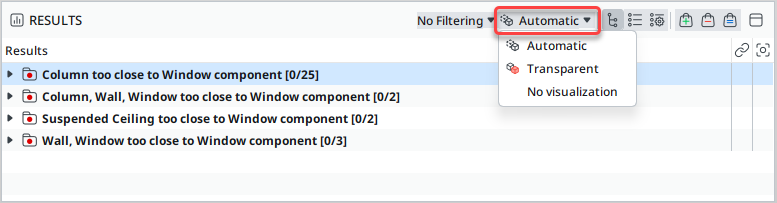

The visualization options:
-

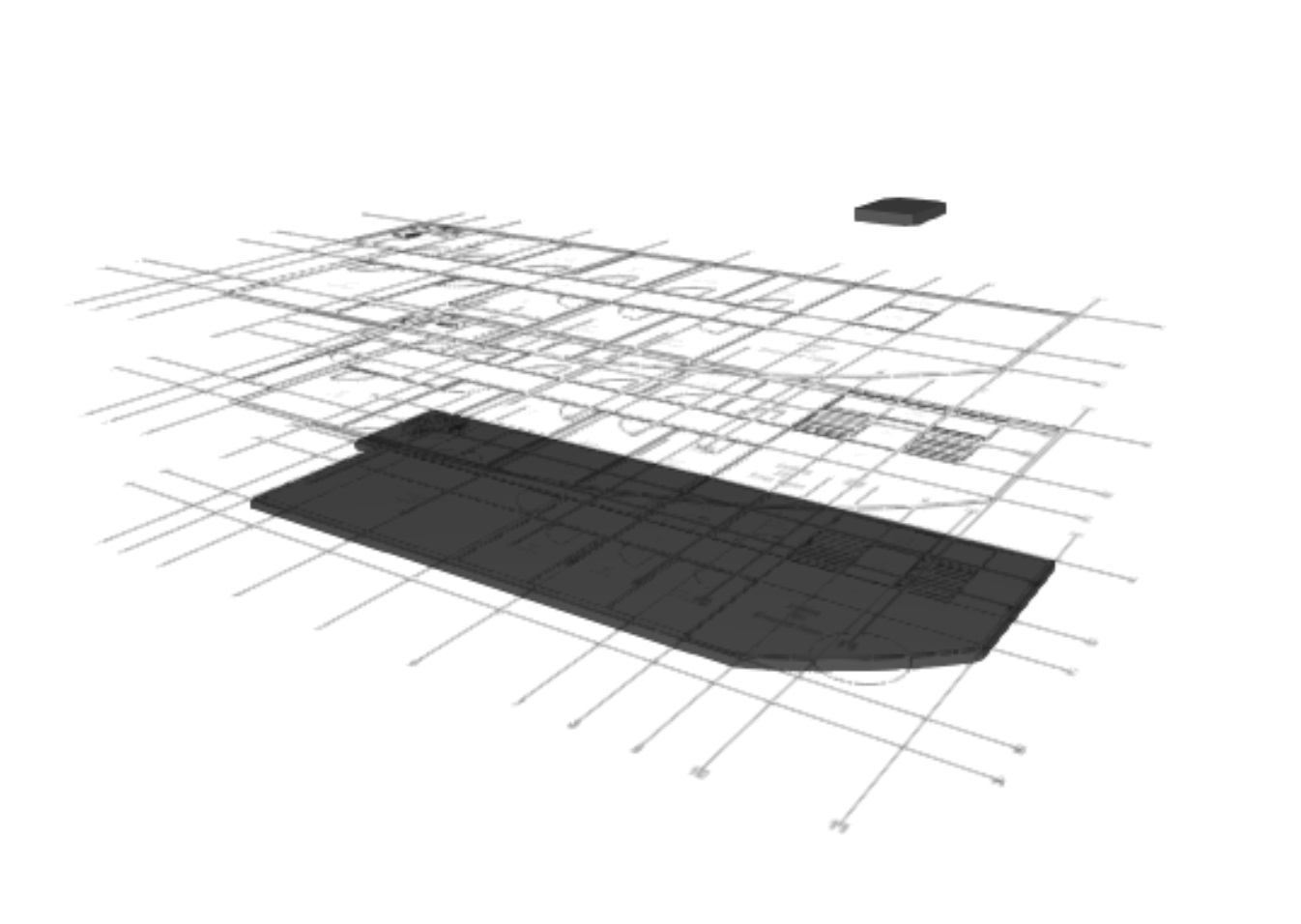

Automatic: This option dynamically adjusts the visibility of model component(s) based on the selected issue or result. This is the default option.
-

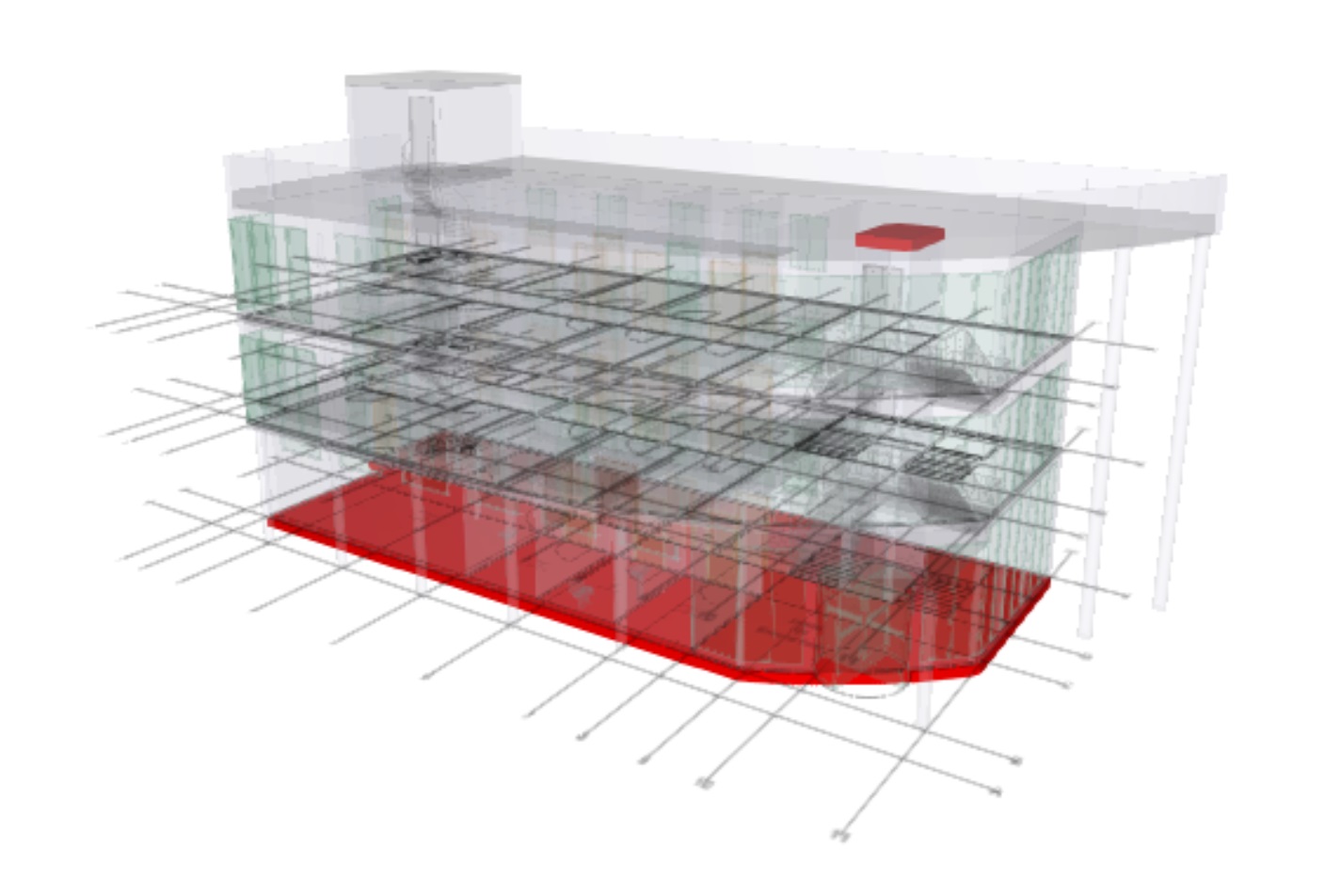

Transparent: In this option, the problem components are highlighted in red and other components are shown as transparent.
-

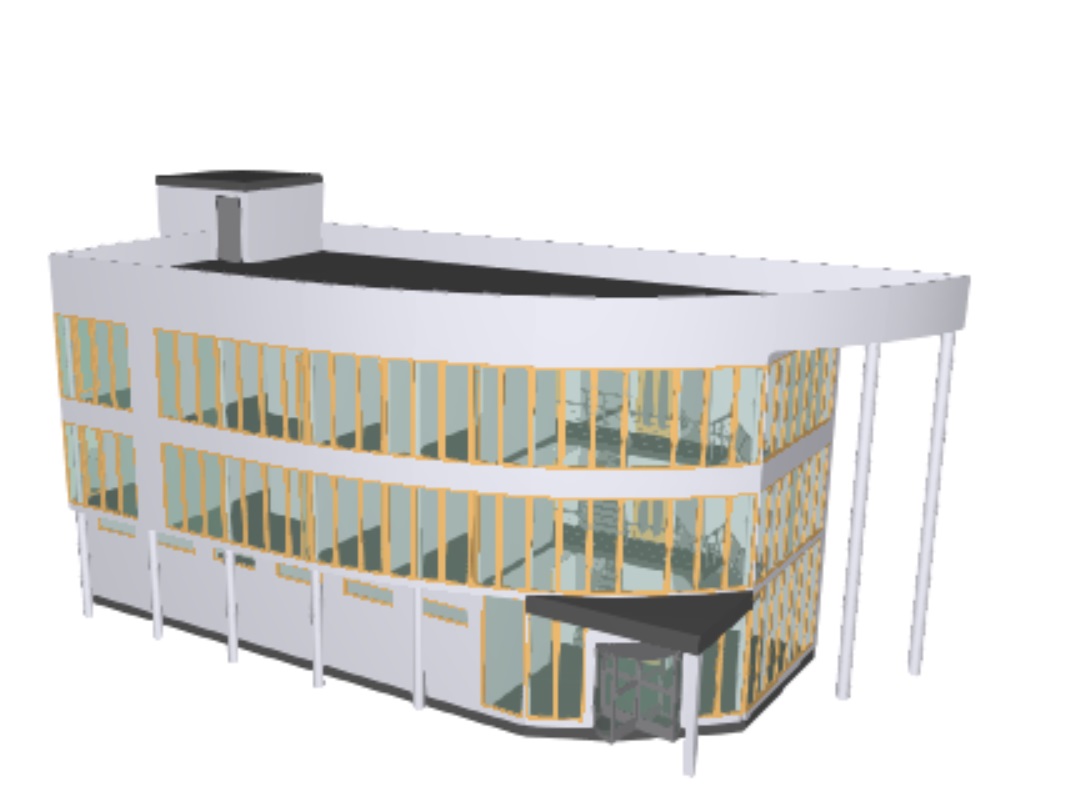

No Visualization: No special visualization is used.
