Version: 25.3

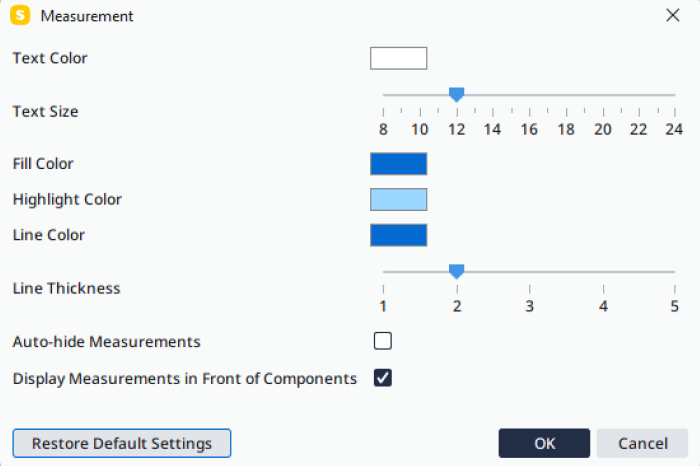

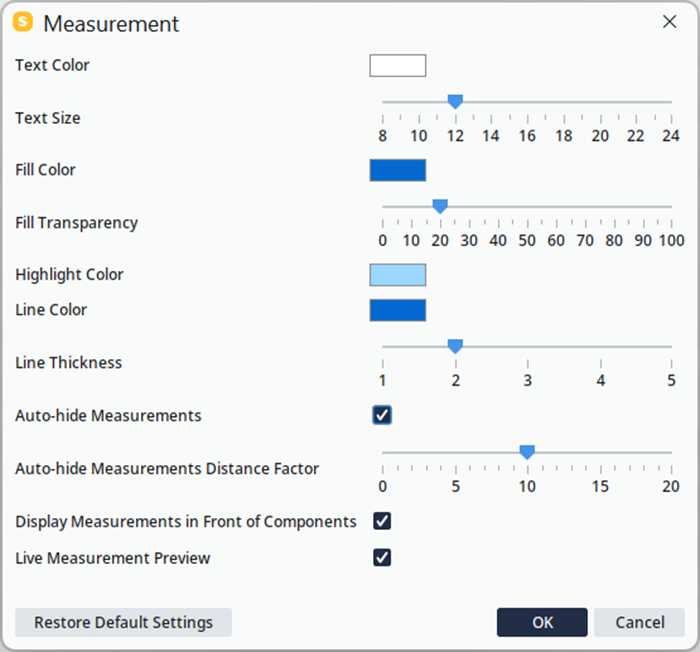

Users can customize their measurement display preferences through the Measurement Settings panel.
This allows the following adjustments:
-
Text Color: Customize the text color of displayed measurements and the boundary contour of area and volume highlights.
-
Text Size: Control the size of the measurement labels (8px to 24px).
-
Fill Color: Sets the color of measurement text bubbles and fill areas for the Area, Polygon Area, and Volume tools.
-
Highlight Color: Modify the highlight color for selected measurements.
-
Line Color: Change the color of measurement lines.
-
Line Thickness: Adjust the thickness of measurement lines (1 to 5 scale).
-
Auto-hide Measurements: Automatically hides measurements when they appear too small on screen. Zoom in to make them visible again.
-
Display Measurement in Front of Components: Shows measurements at their original placement only when the camera is facing the front of the component.
-
Restore Defaults: Reset all settings to their original values.
