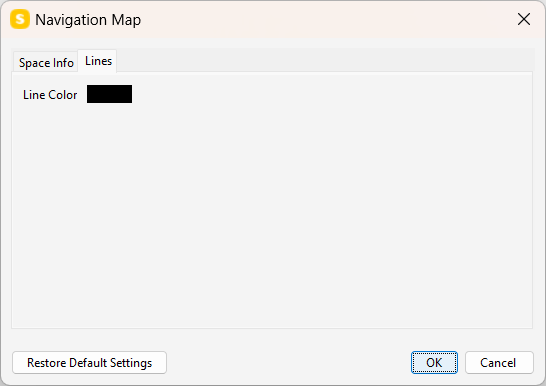

In Navigation Map Settings, you control the settings for space info and line color shown on the Navigation Map. To access the settings, click File > Settings > Navigation Map.
The settings dialog has two tabs:
Restore Default Settings
To restore the settings in this dialog to default values, click the Restore Default Settings dialog and confirm your action. This action affects the settings in the dialog. Note that this action can't be undone.

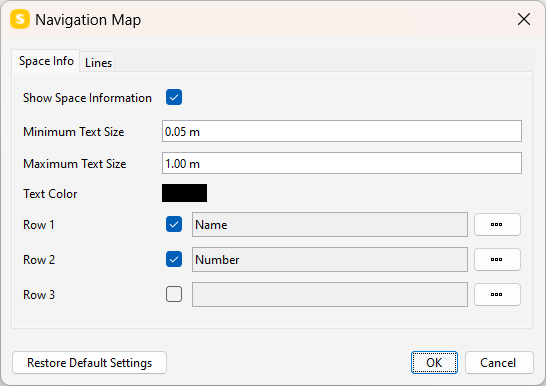

On the Space Info tab, you can set if space info is shown by default in Navigation Map. You can also set the text size and color, and the data shown in space info.
-
Show space information: When checked, space information is shown.
-
Minimum/maximum text size: Set the minimum/maximum text size for space information.
-

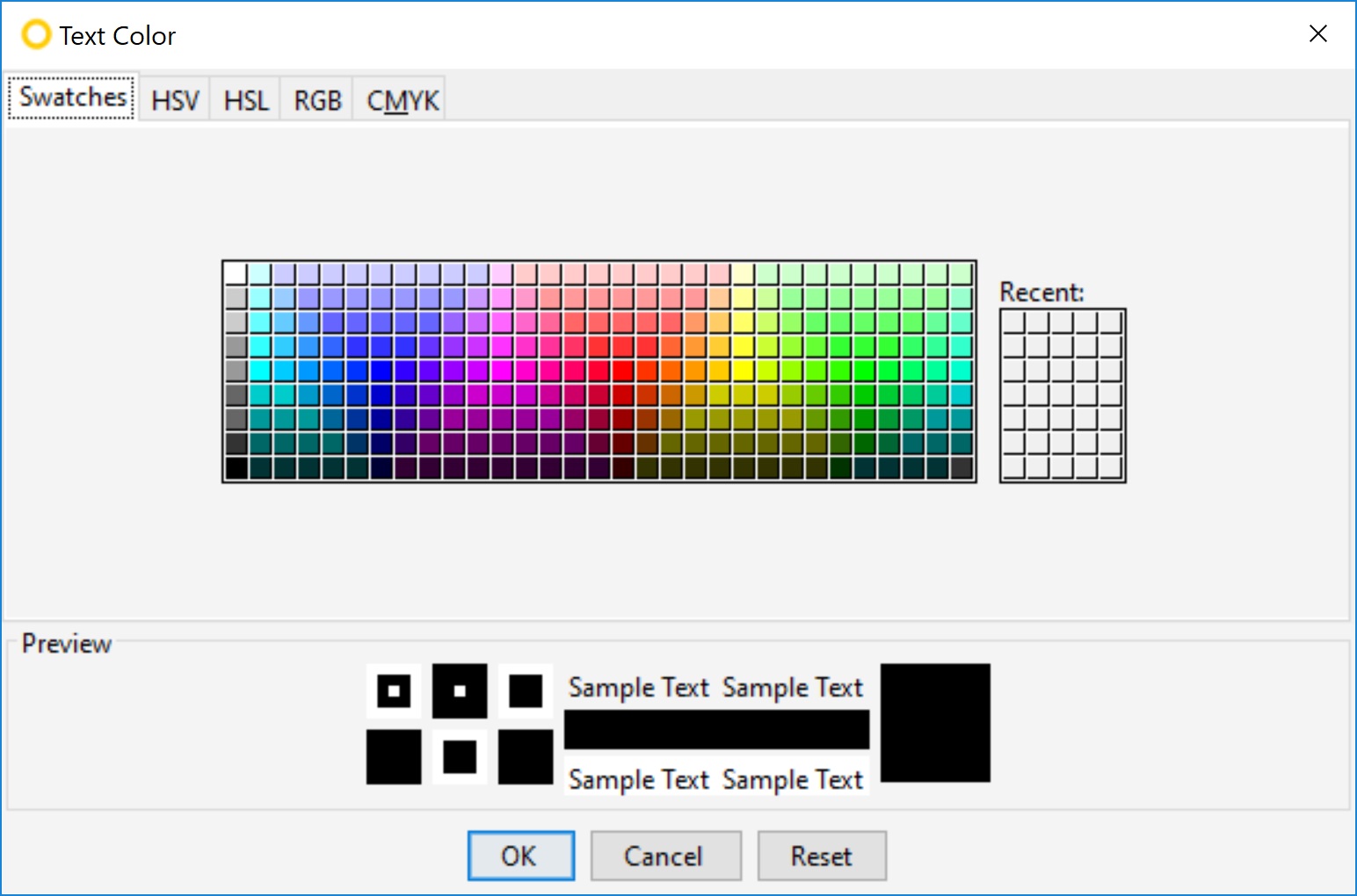

Text color: Set space info text colour. To change the colour, click the color box. A dialog opens. Select the colour and click OK:
-

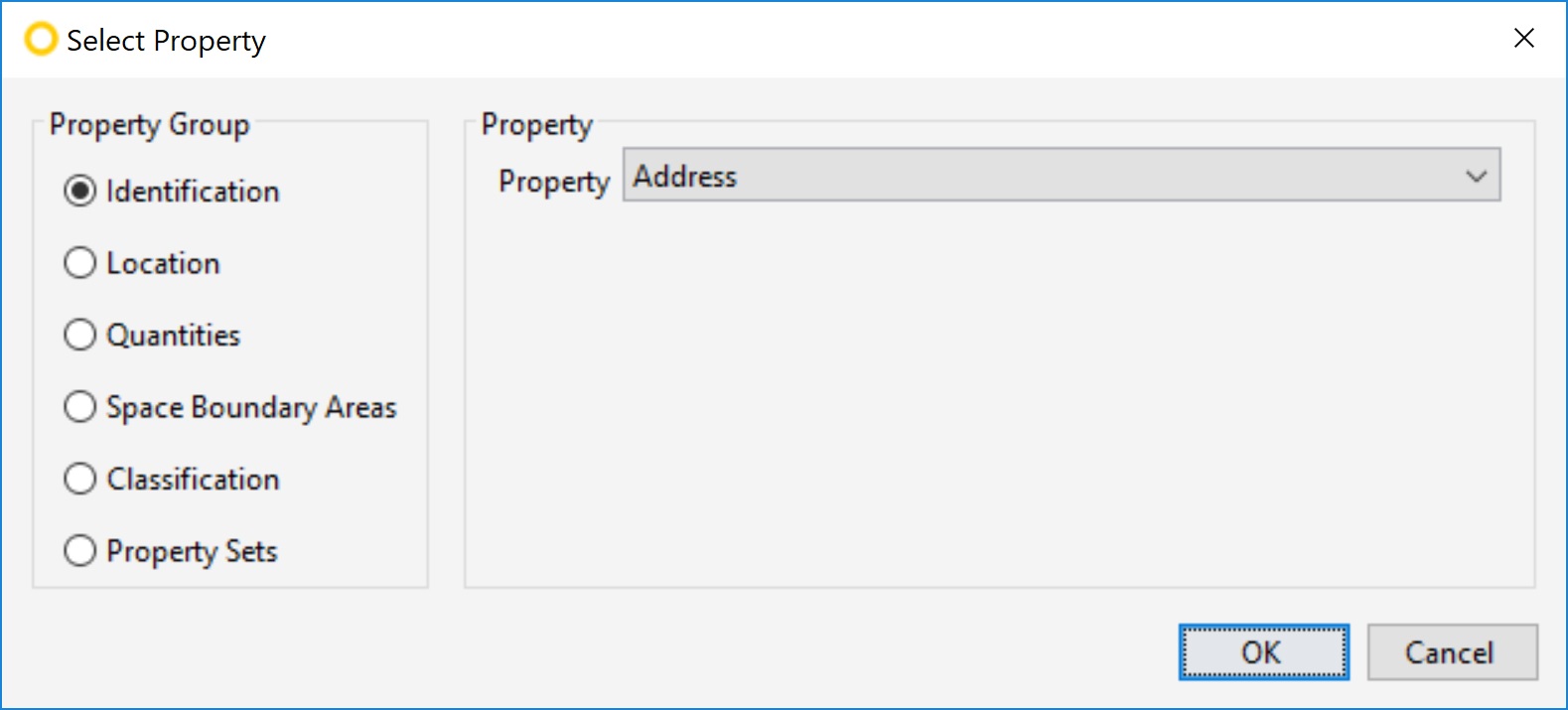

Rows 1-3: You can define the data shown in the space info. To add a new property, click
. A dialog opens. Select a property and click OK:
