This article explains how you can search components to locate them in your model using the search bar.
Related articles:

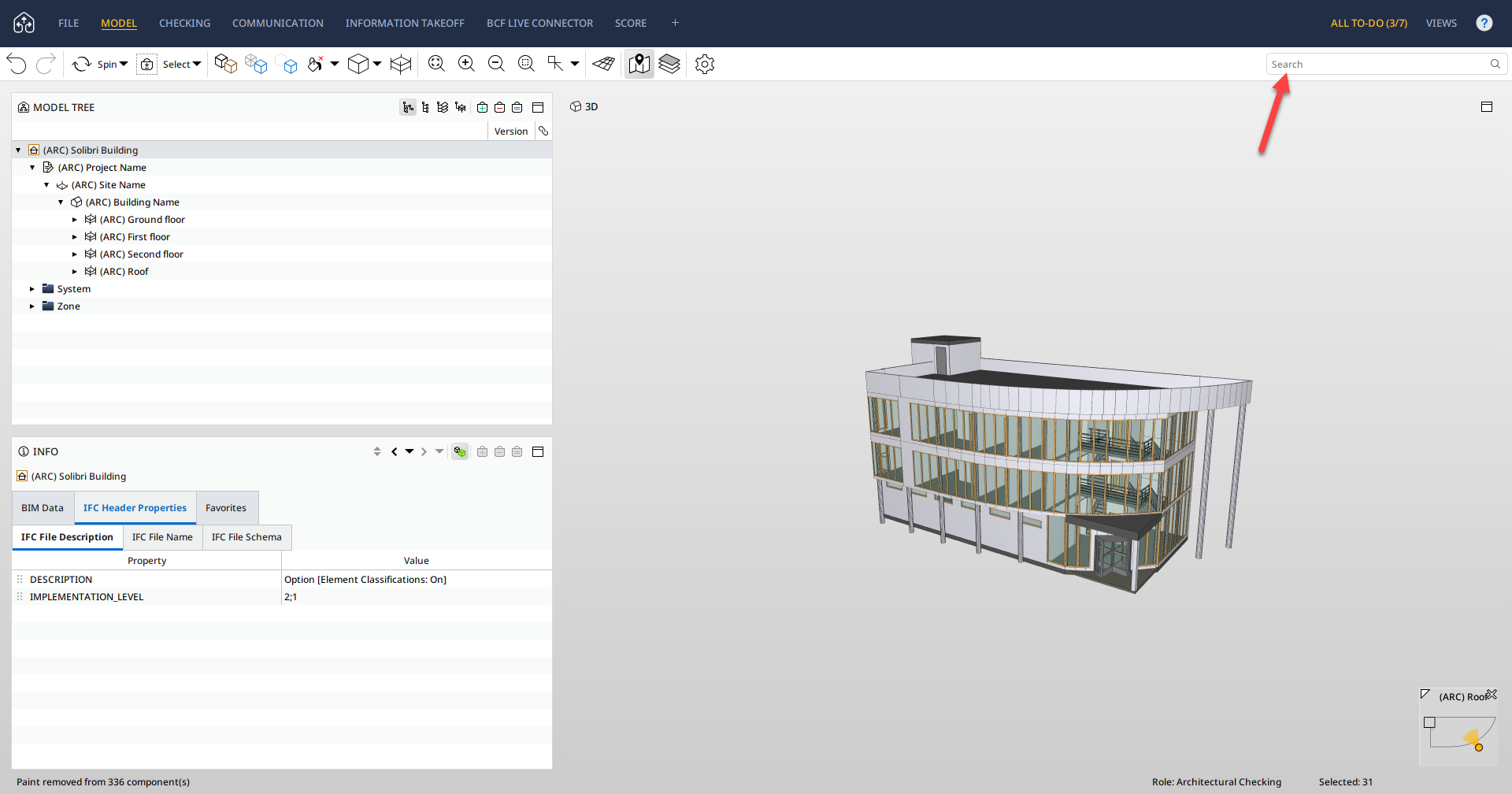

In the top right corner of Solibri, there is a search bar where you can type free text to search components:

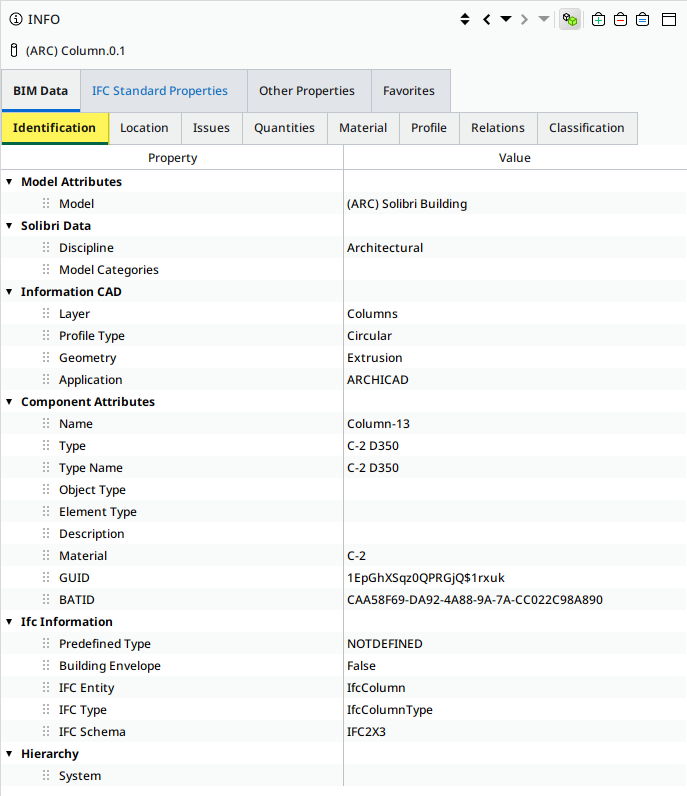

The search is based on the content of the Identification tab in the Info view:

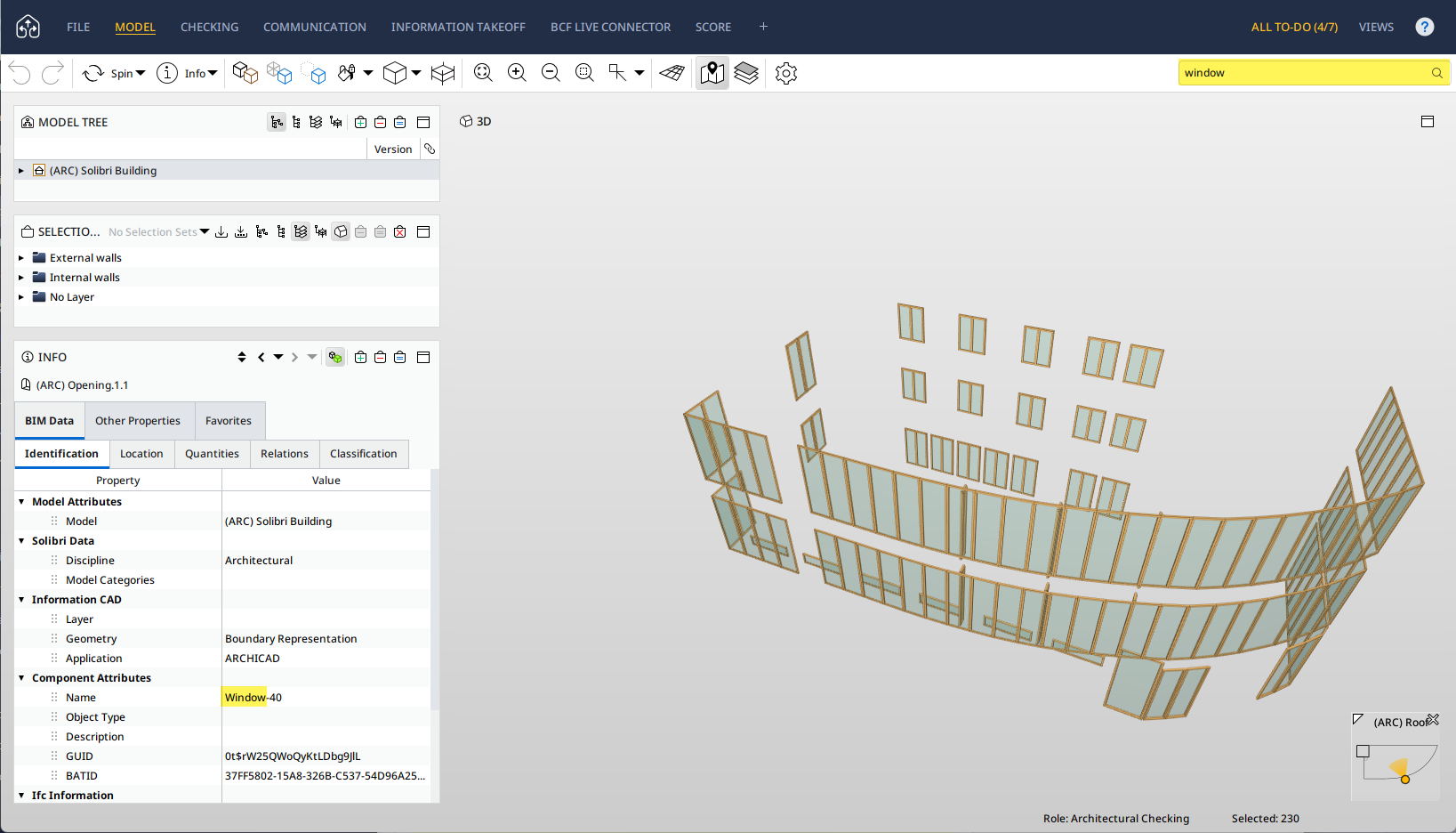

You can refer components, for example, by using their names, GUIDs etc. Found components are automatically set to the Selection Basket:
Notice
Property sets are not searched.
You can use the following features in search:
-
To add additional components, press and hold Ctrl/Cmd while clicking
or pressing Enter. Found components are added to the Selection Basket.
-
* or ? can be used as wildcards
-
if you search with multiple words, they should all be included in a single field
