This article describes how you can use the three visualization tools (Show All, Show Unselected Transparent and Show Selected Only) with the Selection Basket content.

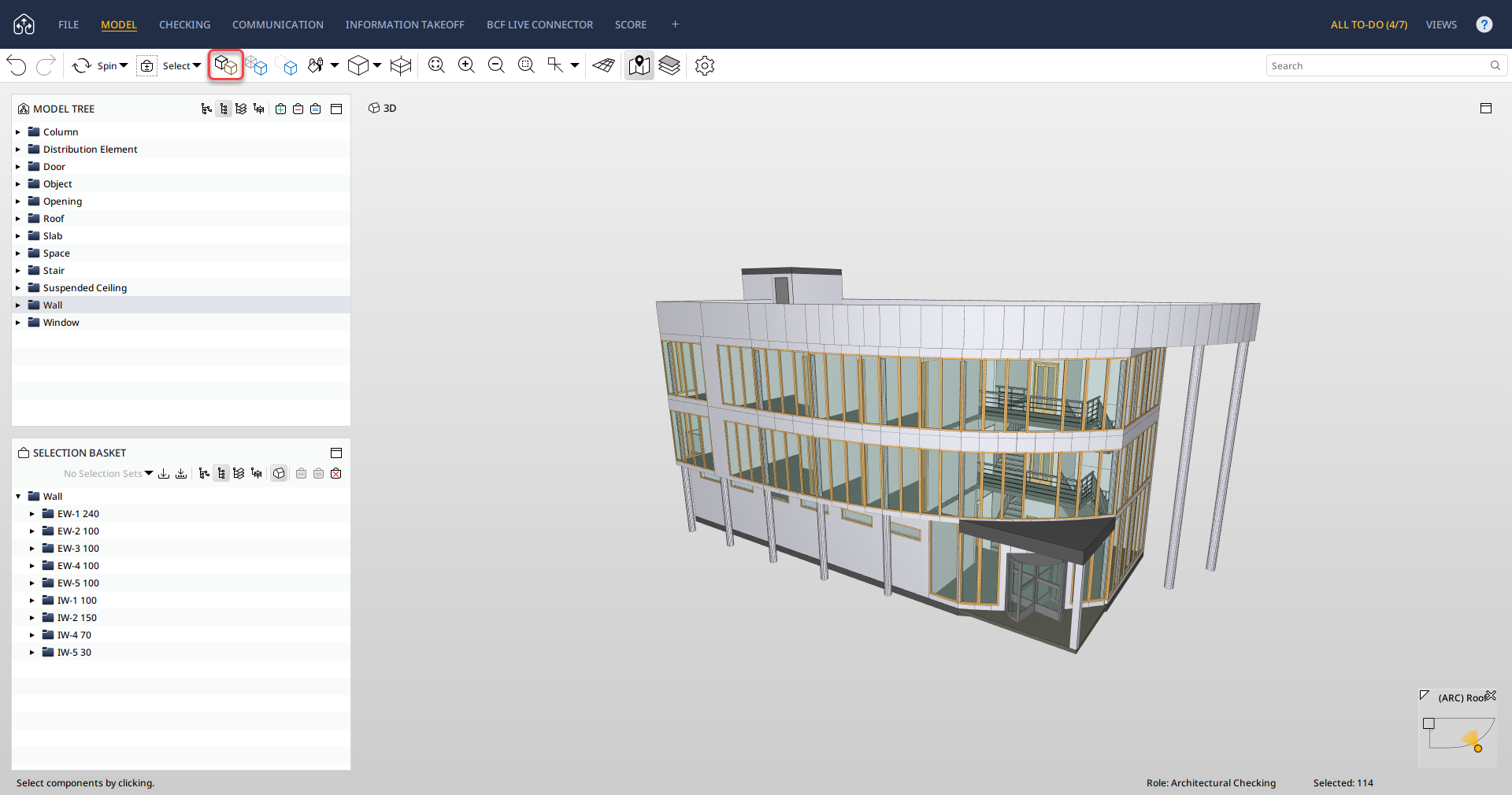

The three visualization tools are available in the 3D toolbar, as highlighted below:
In the examples below, all of the walls have been set to the Selection Basket using the Model Hierarchy in the Model Tree view. Here's how the visualization tools function with the selection:
-
Show All (
): Shows all components
-

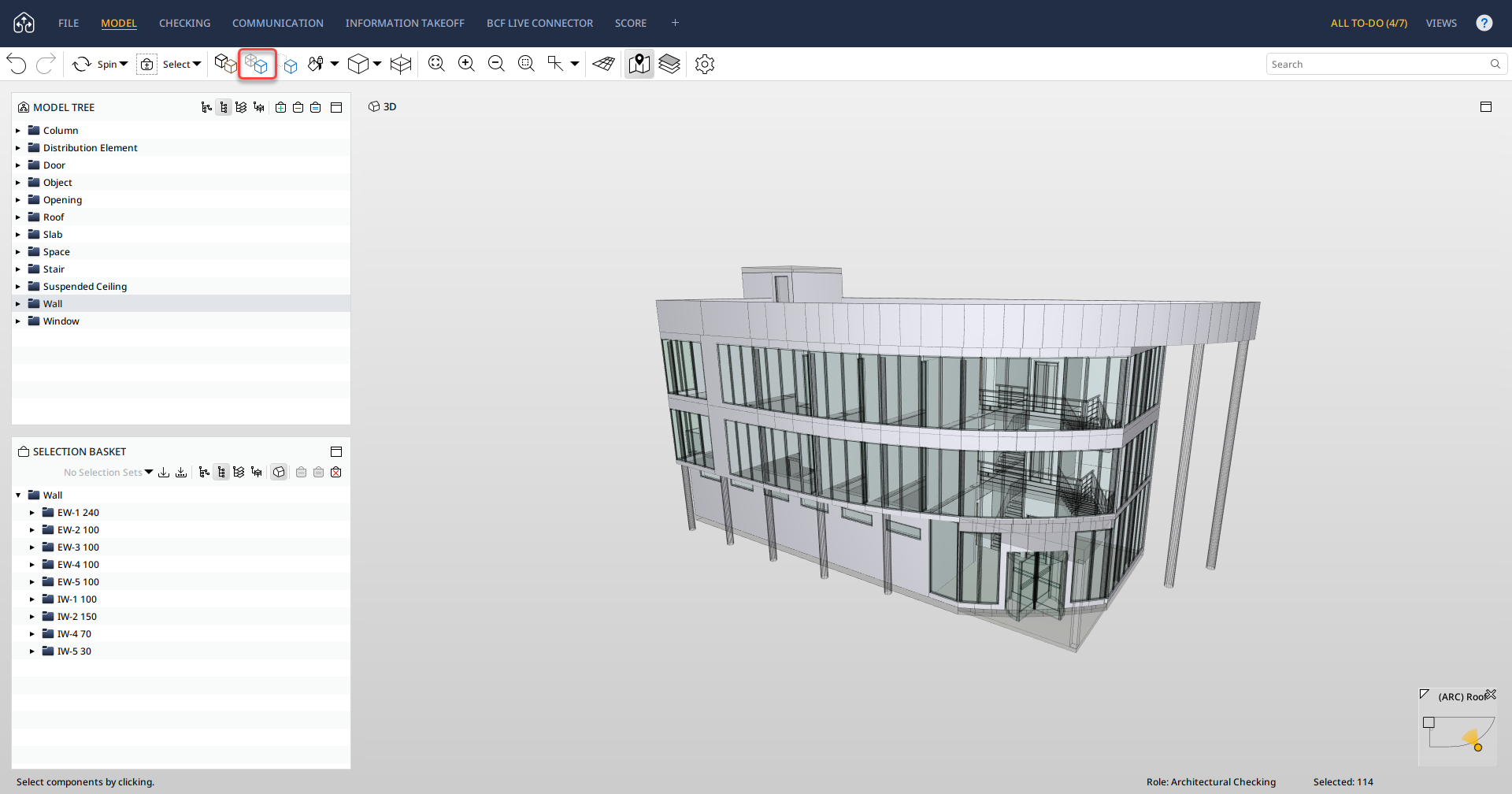

Show Unselected Transparent (
): Turns unselected components transparent.
-

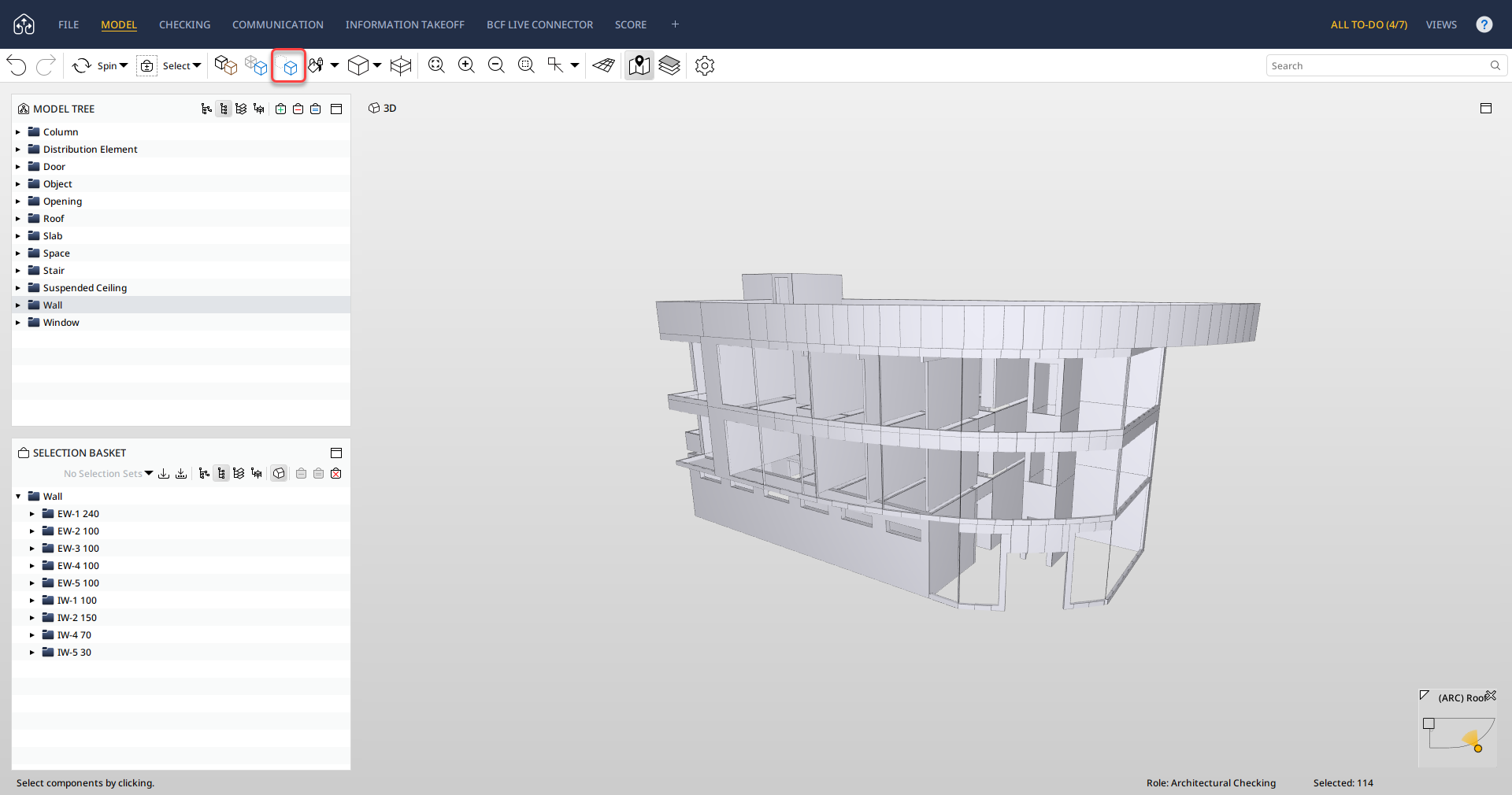

Show Selected Only (
): Hides unselected components.
