This article describes how you can use the Paint tool in Solibri.
The article covers the following topics:
Related articles:

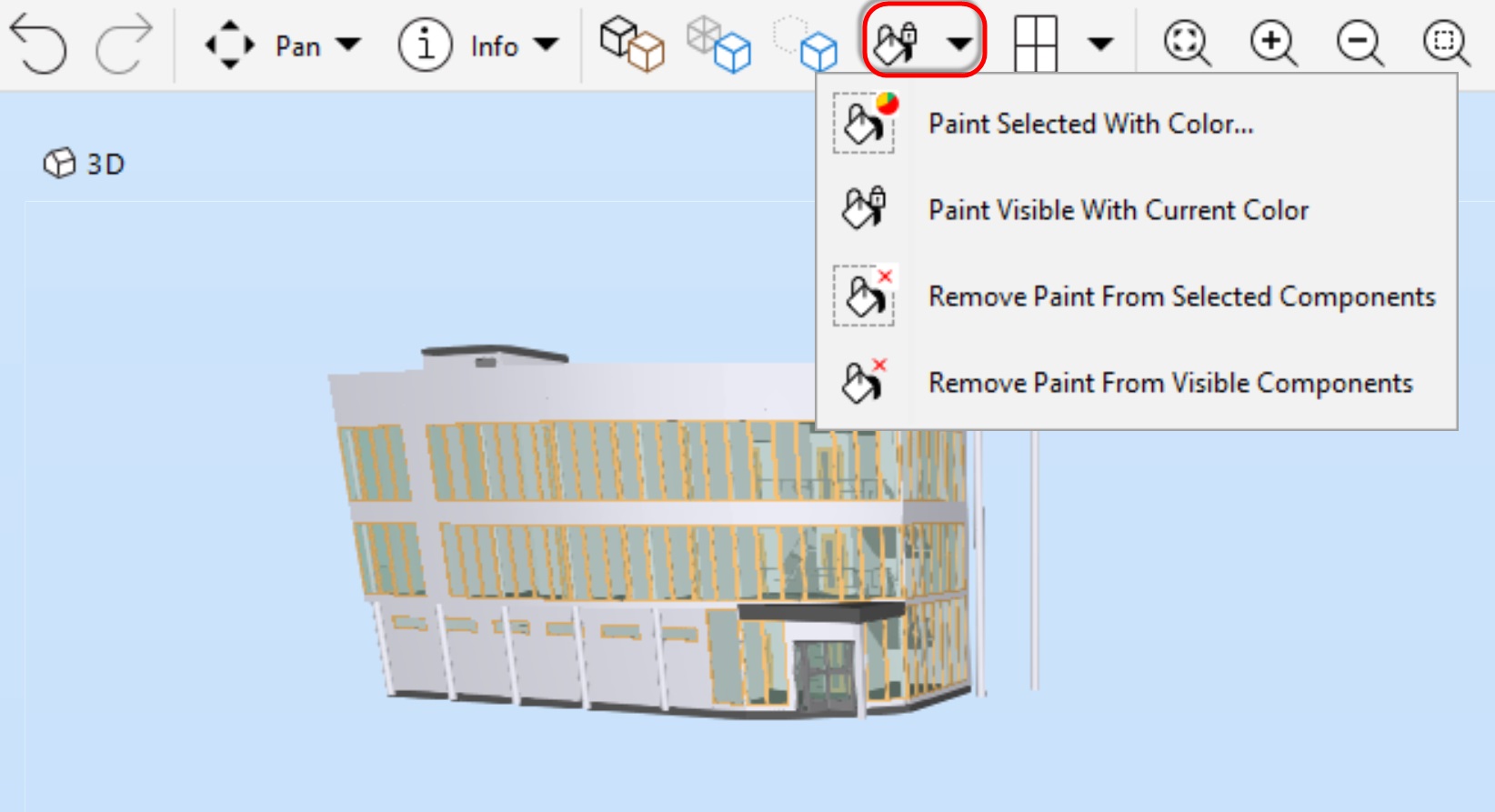

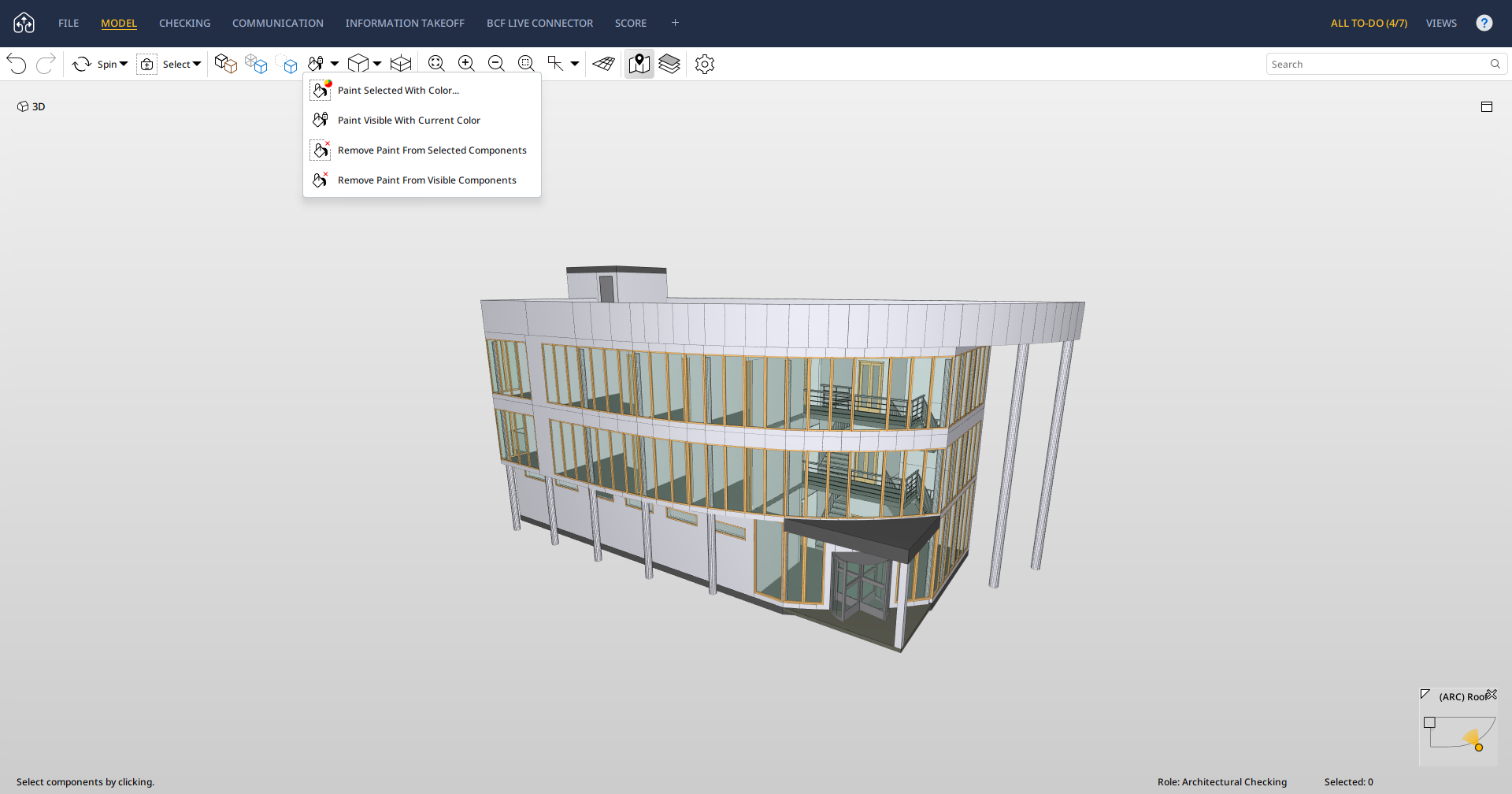

With the Paint tool, you can add and remove paint, to and from either selected or visible components. To paint components, you need to first place the components into the Selection Basket and paint them. The Paint tool options are available in the main toolbar:
To paint the components in the Selection Basket:
-
Add the components into the Selection Basket. In this example, we've set all columns in the Selection Basket.
-
Click Paint Selected with Color (
). The Paint Selection dialog opens.
-
Select the color and color transparency of the component(s). You can preview the selected color before applying it to your component(s) in the Preview section.
-

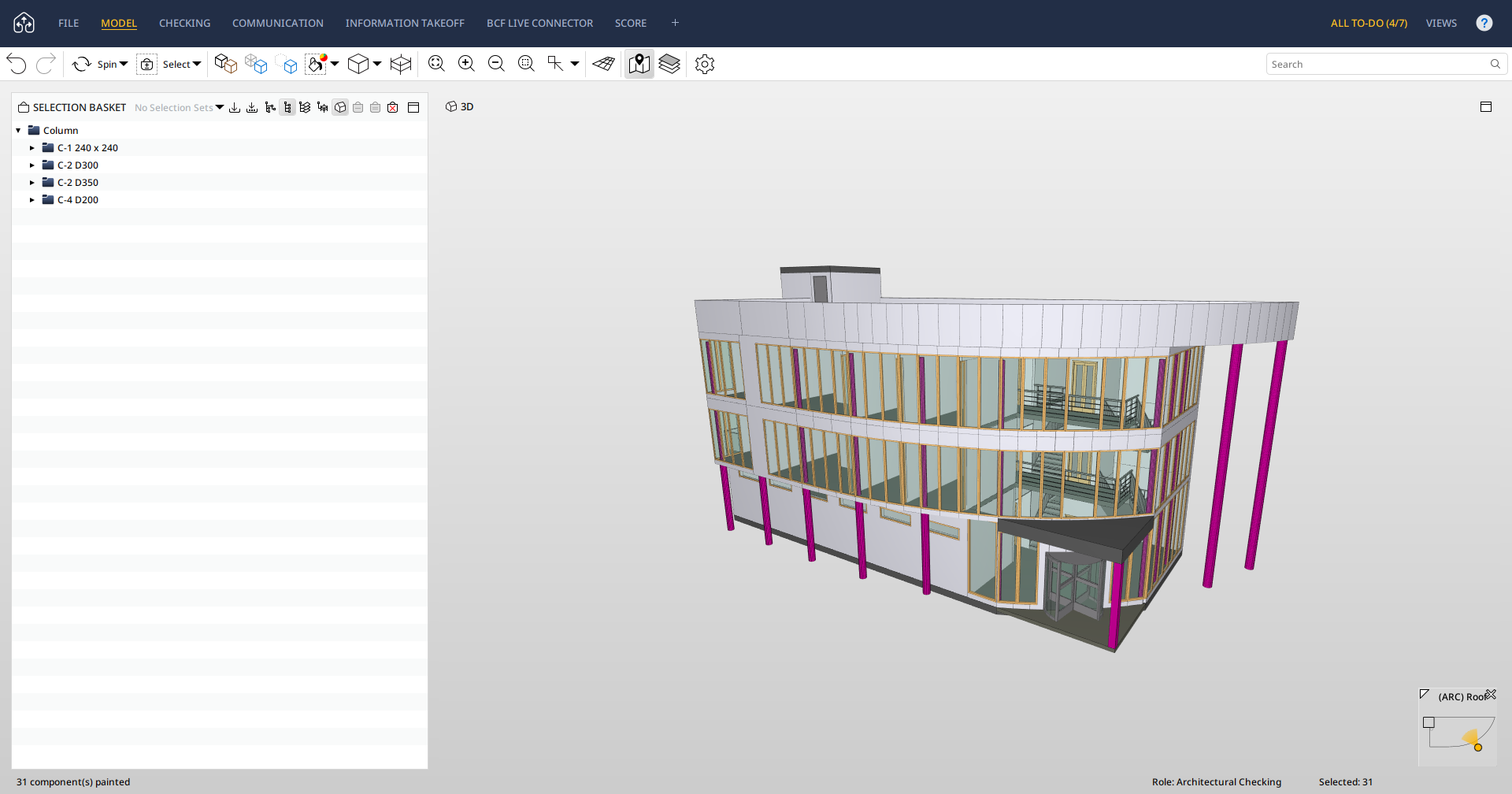

To apply the selected color, click OK. The selected component(s) are painted.
To paint the components currently visible in the 3D view, click .
