Rule ID: SOL/237/1.1
This article describes how the Parking Rule works and how you can configure the rule.
The article covers the following topics:
This rule checks the size of parking spaces. The checking can be limited by the parking-aisle orientation (when aisle components are defined) or by space-orientation inferred automatically when no aisle components are available. Obstructions near the parking space can also be considered.
-
If aisle components are defined: the parking-space orientation is determined relative to the aisle based on the user’s orientation selection.
-
If no aisle components are defined: the rule automatically infers orientation. Spaces with unclear orientation can be included or ignored depending on the Include Unclear Orientation setting.
-
Once filtered by orientation, the rule checks for obstructions according to the configured parameters.
-
Finally, the rule verifies that parking-space dimensions fall within the specified min/max limits.

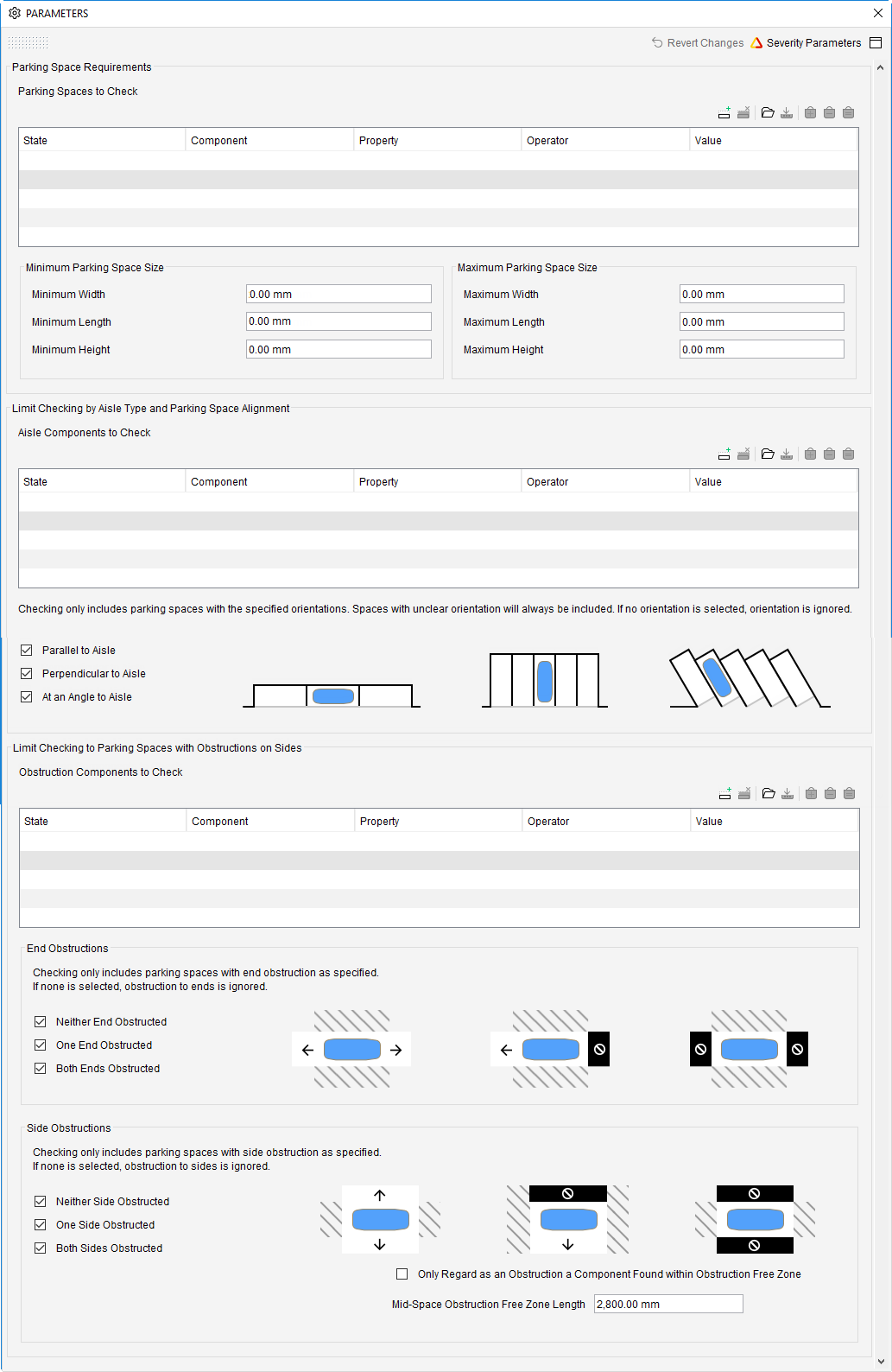

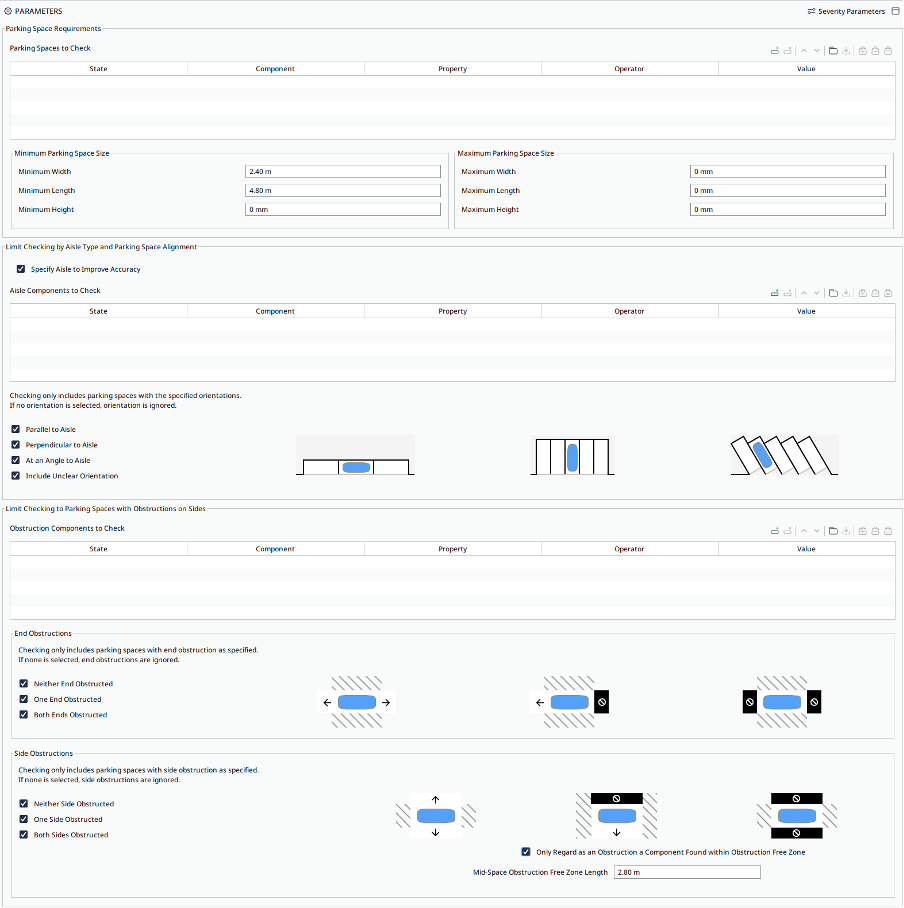

Parking Space Requirements
-
Minimum/Maximum Parking Space Size: Define the minimum and maximum width, length, and height of parking spaces.
Limit Checking by Aisle Type and Parking Space Alignment
-
Aisle Components to Check: Components that represent parking aisles.
-
Parking Space Orientation:
-
Parallel to Aisle
-
Perpendicular to Aisle
-
At an Angle to Aisle
Tip
When no aisle components are defined, the rule automatically infers the parking-space orientation.
-
-
Include Unclear Orientation: Allows including or excluding parking spaces whose orientation cannot be reliably determined.
Limit Checking to Parking Spaces with Obstructions on Sides or Ends
-
Obstruction Components to Check: Components treated as obstructions.
-
End Obstructions: Choose whether to check spaces with one, both, or no end obstructions.
-
Side Obstructions: Choose whether to check spaces with side obstructions or require an “obstruction-free zone” in the middle area (for example, to allow door opening).
-
Mid-Space Obstruction-Free Zone Length: Defines the length of the free zone if selected.
