This rule checks that distance from a hole to the beam end or top is more than given limit value.

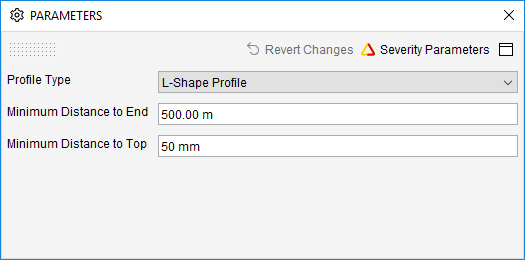

The rule parameters are:
Profile Type:
The profile type to check. Possible values are rectangle, L-shape, non-uniform L-shape, T-shape and non-uniform T-shape profiles.
Minimum Distance to End:
Minimum allowed distance between a hole and the end of the component.
Minimum Distance to Top:
Minimum allowed distance between a hole and the top of the element.
Analysing the results:
The rule creates an issue of each component, where a hole is located too near to the end of the component, or the top of the component.
Rule report:
The rule does not have a report.
Rule tools:
The rule does not have any tools.
