Using the Autodesk Forma/BIM 360 Integration is available in Solibri Advanced and Premium.
This article describes how you can connect to the BIM 360 construction document management software. With Solibri's BIM 360 integration, you have access to the latest information directly from Solibri. You can open, save and update models in your projects without saving the model files locally. The BIM 360 integration is available in Solibri v9.13.1 and newer. Please note that the integration is not available in Solibri Starter and Essential.
Additionally, you can use the BIM 360 integration to connect to your Autodesk Forma projects.
You can open the following file types in Solibri using BIM 360:
-
Model files:
-
DWG
-
IFC & IFCZIP
-
PDF
-
SMC
-
ZIP
-
-
In v9.13.8 and newer, you can also open and save resource files, which allows you to access and manage resources more effectively within the integrated environment.
-
You can open and save the following resource files: rulesets, ITO definitions, classifications, filters, BCF files, Excel reports and templates, hierarchies, materials, and IDS files
-
You’re able to store and manage presentation reports, including BCF reports, general reports (RTF, PDF), coordination reports (Excel), and ITO reports, within the integrated environment
-
Important
To connect to BIM 360 from Solibri, you need to have a BIM 360 account.
The article covers the following topics:
Before you can connect to BIM 360 in Solibri, your BIM 360 account admin needs to enable the Solibri integration via the BIM 360 app store. The admin needs to:

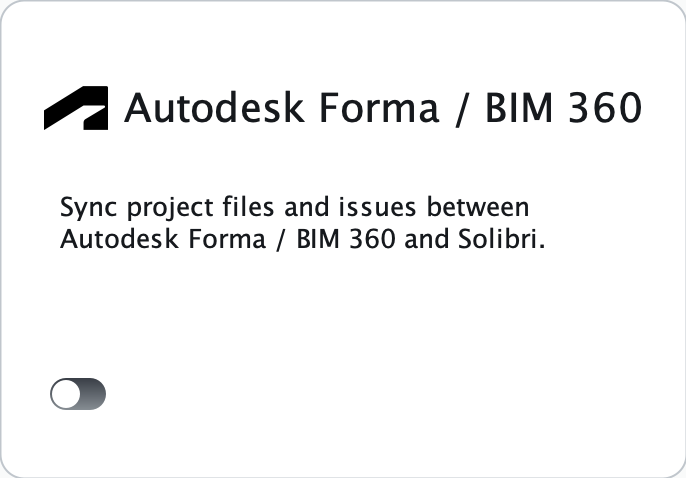

Once the admin has enabled the integration, you can go to Integrations in Solibri and connect to BIM 360.
When you have enabled the BIM 360 connection, a BIM 360 tab will become available in the file chooser. You can open one or multiple files from the CDE at once. Opening multiple files works for .ifc, .zip, .ifczip, .dwg and .pdf files. You can't open multiple .smc files, but you can open, for example, an .smc and a .ifc file.
To open files from BIM 360:
-
Click File > Open Models. A dialog opens. Select the BIM 360 tab.
-
Select the server (EMEA/US) from the Server drop-down menu:
-

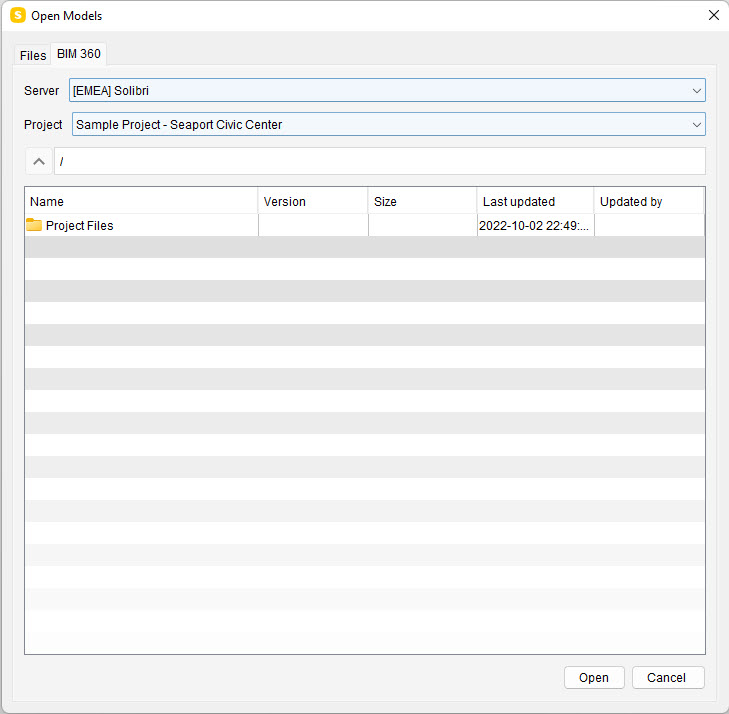

Select your project from the Project drop-down menu:
-
After selecting the project, navigate to the desired file or folder below.
-

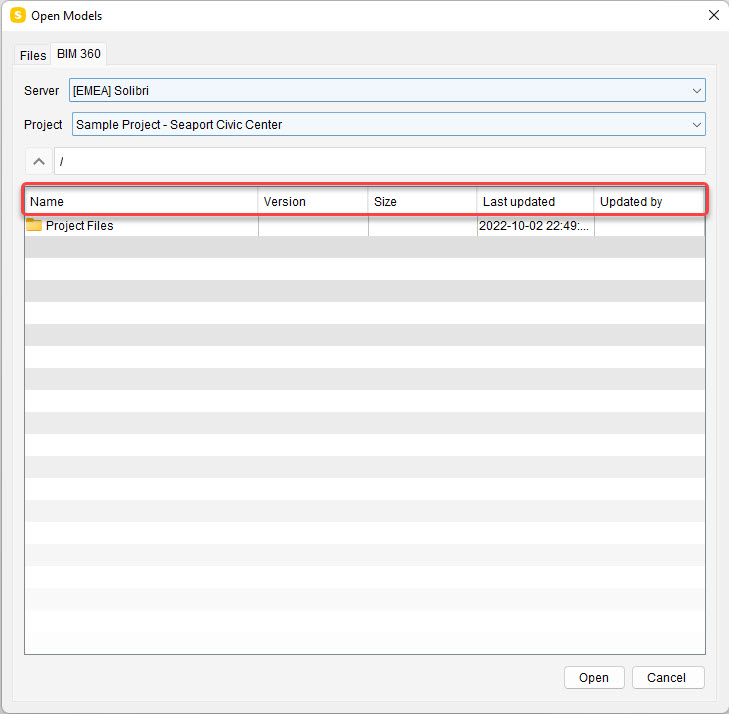

In the file chooser, you can see the different files and sort them by Name, Version, Size, Last updated and Updated by by clicking the column heading:
-
Double click the file (or select the file(s) and click Open).
-
The model opens in Solibri. For more information on the next steps, see Setting Model Short Name, Discipline and Category.
Tip
Additionally, Solibri shows the BIM 360 files in the Recent Models list, as well as the Recent tab inside the Open Models dialog.
Tip
If you have already opened an SMC file, you can only add more IFC files (not open another SMC file).
Tip

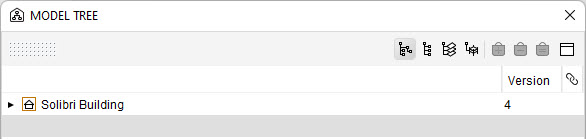

When you open a file from BIM 360, you can see the file version number in the Model Tree view:
You can only save SMC files into BIM 360. To save models into BIM 360:
-

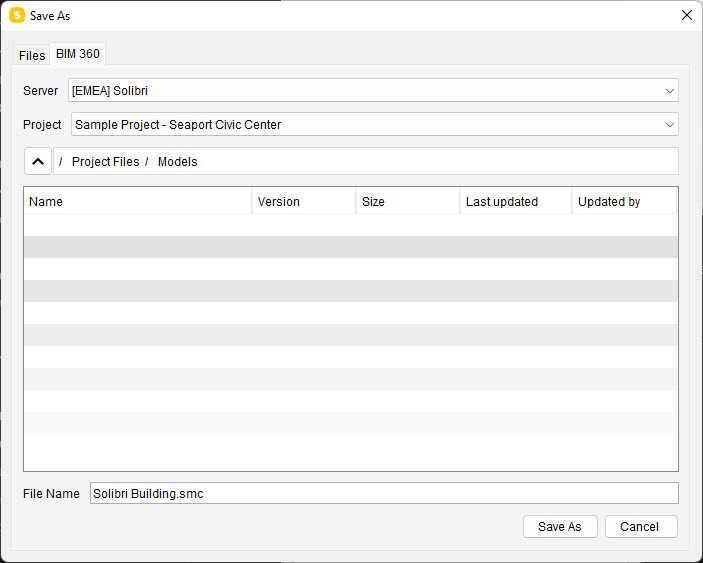

Click Save (if saving for the first time) or Save As. A dialog opens. Go to the BIM 360 tab.
-
If you have opened the file from BIM 360, the file chooser remembers the project. If not, first select the server and project and then navigate to the correct file location:
-
Select the file location and click Save or Save As.
Tip
If you disconnect the integration, Solibri displays a warning which suggest that you save your progress before disconnecting.
You can update imported IFC models with new versions directly from BIM 360. You can select to update either a single IFC model or several IFC models at once.
Note that if you update models, you need to manually re-check the model to update the checking results. Issues that are not affected by the update keep their decisions, comments and snapshots. You can see the updated model in 3D when an issue is selected. You need to update the snapshots and other details in issue slides manually.
To update models from BIM 360:
-

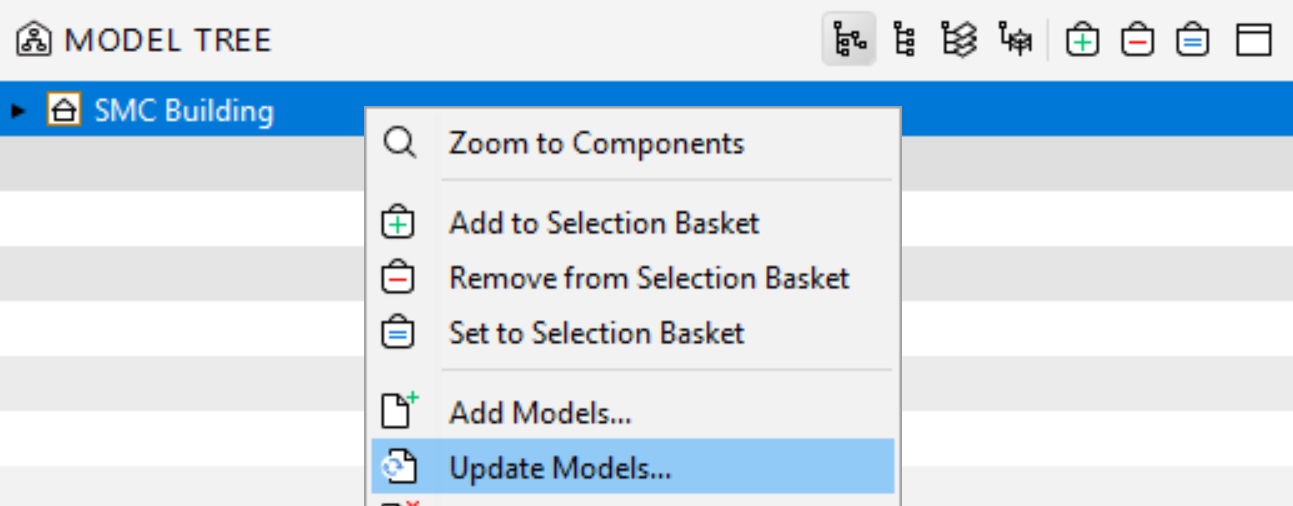

Select a model/models in the Model Tree view. Right click and select Update Models from the context menu:
Alternatively, click File, then Update Models. The dialog below will then list all the opened models and you can select which ones you wish to update.
-

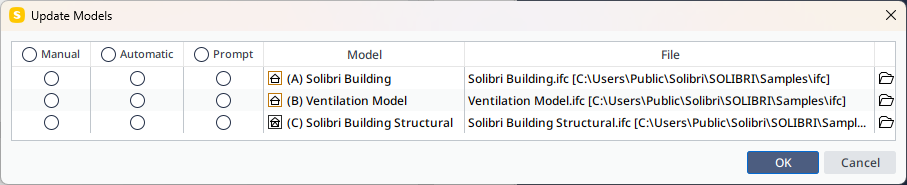

The Update Models dialog opens:
Select one of the three updating options:
-

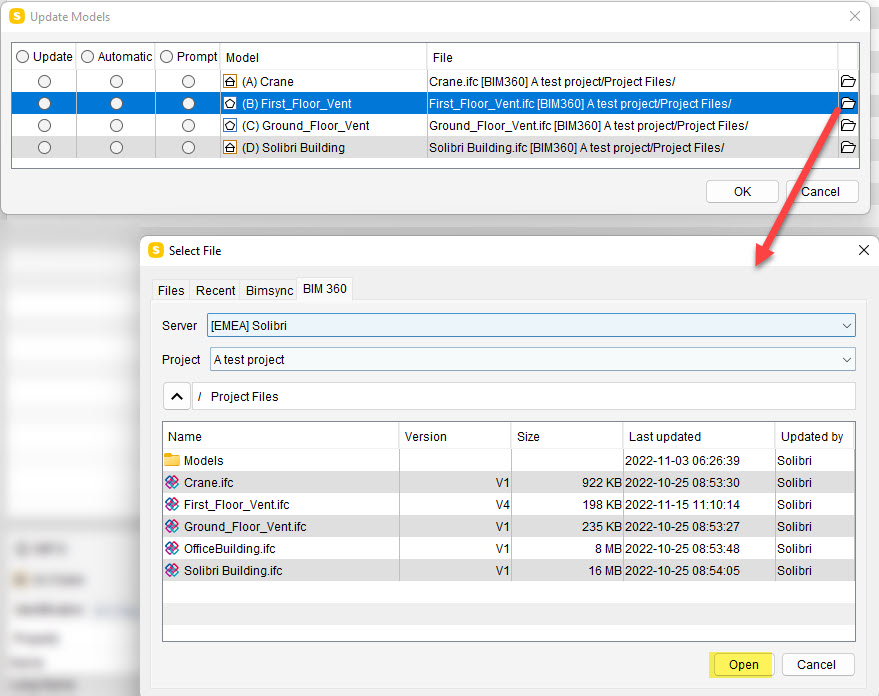

Update: Requires you to manually carry out this task when you want to update any models. If the filename has changed (revision letter, date etc.) then the new version of the file will need to be located using the Folder icon (
) at the end of the row. This will need to be done for each model.
-
Automatic: Updates are done automatically in the background when the software is started, and during a session if the time stamp is changed. Make sure that the new version of your file(s) is located in the same folder where the original model file is, and that it has the same name. The software will update your model automatically.
-
Prompt: You will get a prompt when the update is available, and the updating starts at your convenience. Make sure that the new version of your file(s) is located in the same folder where the original model file is, and that it has the same name.
-
-
When you click
-
Click OK.
Important
After any update or change to the Model Tree structure (such as adding or removing IFC files), Solibri will notify you of unsynchronised results. You will also notice that:
-
The rulesets are greyed out and reporting is disabled
-
Result Summary view is blank
-
The Results view shows the following message advising to run the check again: "Some models have been modified since the last check is done, please run check to see the results."
To proceed, you must click Check Model/Check Selected to run all the checks again.
