This article describes how to use the Carbon Checker Extension for Solibri Office. This sustainability extension is available for free in Solibri Solution Center, and there are two versions available: the Finnish one and the Swedish one. The versions are connected with different databases (see more information below).
For more information on how to install an use an extension in Solibri, see Installing and Using an Extension in Solibri Office. For Solibri Office Lite subscription customers, the extension is available on the Extensions page under the File menu.
There's also a video tutorial available to help you to get started with the extension:
The article contains the following topics:
Tip
Interested in sustainable building and carbon neutrality? Have a look at our guidebook, which gives you practical insights for managing carbon footprints with BIM.
The Carbon Checker extension for Solibri Office helps your AEC design organization to quickly analyze the model’s carbon footprint by embedding generic emission factors into BIM objects in Solibri Office. Carbon Checker enables you to work with material information in Swedish, Finnish and English and create a bill of quantities together with carbon calculations per individual BIM object, yet structured per material, component type or technical discipline.
The extension comes with pre-loaded generic emission factors regarding above ground buildings from two databases. The Finnish version of the extension is connected with the Emissions Database for Construction by SYKE (a Finnish database), and the Swedish version to the Climate database by Boverket (a Swedish database).
There are four roles to choose from, depending on the location of the project and the language you want to work with. The emission factors vary between Sweden and Finland and, therefore, the location according to the project should be chosen respectively (SE/FI). The language used for material descriptions can be English or the local languages (suomi/svenska).
Carbon Checker is referencing the following database versions:
-
Emissions Database for Construction by SYKE
-
version “01.01.000”
-
date "2023-06-29T21:53:56.706Z"
-
-
Climate Database by Boverket
-
version ”02.04.000”
-
date "2023-01-24T07:29:04Z"
-
The overall workflow for the extension is:
-
Install the extension (either FI or SE).
-
Select a role.
-
Open a model.
-
Check the model for duplicates.
-
Complete the three classifications (classify the included/excluded components, do the material mapping and define cavity ratios). Defining the cavity ratios is not mandatory, but we recommend it.
-
Run information takeoff and report the results.
The extension includes the following resources:
Roles:
The Finnish version of the extension includes the following roles:
-
Carbon Checker - Finnish Database - SYKE Construction - Terminology EN.xml: Information is based on the Finnish Database. All terms in the database are in English.
-
Carbon Checker - Finnish Database - SYKE Construction - Terminology FI.xml: Information is based on the Finnish Database. All terms in the database are in Finnish.
The Swedish version of the extension includes the following roles:
-
Carbon Checker - Swedish Database - Boverket- Terminology EN.xml: Information is based on the Swedish Database. All terms in the database are in English.
-
Carbon Checker - Swedish Database - Boverket - Terminology SE.xml: Information is based on the Swedish Database. All terms in the database are in Swedish.
Rulesets:
-
Duplicates.cset: The ruleset checks for duplicates in the model. The rules included in the ruleset are:
-
Encapsulated Inside of Other Object
-
Duplicates
-
Overlappings
-
Classifications:
-
Carbon Checker - Auto - Conversions Unit Locked).classification: The conversion units of components. Depending on the component group in the database (FI/SE), the components are assigned units that represent the basis for calculating the GWP. For example, the GWP for doors and windows is calculated according to the unit, but for columns and walls according to kg/m³.
-
Carbon Checker - Auto - Conversions Value (Locked).classification: The conversion values of components. The conversion factor is given in the database (FI/SE). For example, a 380mm*380mm Column has a conversion factor of 359 Weight, kg/m. Calculation: finalResult = dimensions[0] * conversionsValue * emissionsFactor.
-
Carbon Checker - Auto - Emission Factors A1-A3 Typical (Locked).classification: The emission factors are assigned, respectively, to the material groups. An example value for columns: GWP (A1-A3 FOSSIL), TYPICAL VALUE Not for building permit calculations 0.19 kg CO2e /kg.
Important
Emission factors can be communicated per unit, m, m² or m³. Note that if you wish to communicate carbon intensity, the conversions units must be the same for the respective numbers. If the units are different, the numbers aren't comparable.
-
Carbon Checker - Auto - Material [Local Name] (Locked).classification: The Finnish or Swedish names for the materials.
-
Carbon Checker - Auto - Material [FI-en]/[SE-en] (Locked).classification: The English names for the materials.
-
Carbon Checker - Auto - Material Category System (Locked).classification: The overarching group of materials, such as metals. The information is given in the database (FI/SE). For example, for columns, the Finnish database has: CLASSIFICATION / TALO 2000 287.1 Betonipilarit.
-
Carbon Checker - Auto - Resource ID (Locked).classification: The identification numbers for the given materials from the original databases.
-
Carbon Checker - Step 1 - Included Components.classification: With this classification, you can specify which components should be included in the carbon calculation (this is done to specify which GWP for which components should be calculated).
-
Carbon Checker - Step 2 - Material [FI-en]/[SE-en].classification: Component material information in English. In this classification, you must map which components (IfcEntity or Solibri Objects of the model, with which attributes/Properties) belongs to which Material group in the database (FI/SE).
-
Carbon Checker - Step 2 - Material [FI-fi]/[SE-sv].classification: Component material information in Finnish. See the description above.
-
Carbon Checker - Step 3 - Cavity Ratio.classification: Cavity ratio information. This is not a mandatory classification, however, it's recommended. You can define a cavity ratio value for hollow objects. For example, if a component has openings which are not modelled, but the GWP is measured in kg/m², you can reduce the area with the Cavity Ratio Value.
Tip
Some of the classifications are locked. They'll be automatically populated when you've completed thematerial mapping.
ITO definitions:
-
Carbon Checker - ITO Grouped.ito: Lists all the available data, including all the common metadata, classifications, volumes, areas, lengths, and bounding boxes. Components with the same component group and component type are grouped, and the sum of the GWP for these groups is given.
-
Carbon Checker - ITO per GUID.ito: Lists all the available data per each individual component, including all the common metadata, classifications, volumes, areas, lengths, and bounding boxes. The GWP is calculated for every single component based on the component GUID.
-
GWP per Component.ito: GWP per component group. For example: all Walls, all external Walls, all Doors, and all FireExit doors.
-
GWP per Discipline.ito: GWP per discipline. The components are grouped by discipline, for example all architectural wall components, all architectural door components doors, or all MEP duct components.
-
GWP per Material.ito: GWP per material. The components are grouped by material and the sum of the GWP for these groups is given. For example, the Finnish database has 311 Puuikkunat and 312 Metalli-ikkunat.
Spreadsheet templates:
-
Carbon Checker - ITO Grouped_template.xlsx
-
Carbon Checker - ITO per GUID_template.xlsx
-
GWP per Component_template.xlsx
-
GWP per Discipline_template.xlsx
-
GWP per Material_template.xlsx

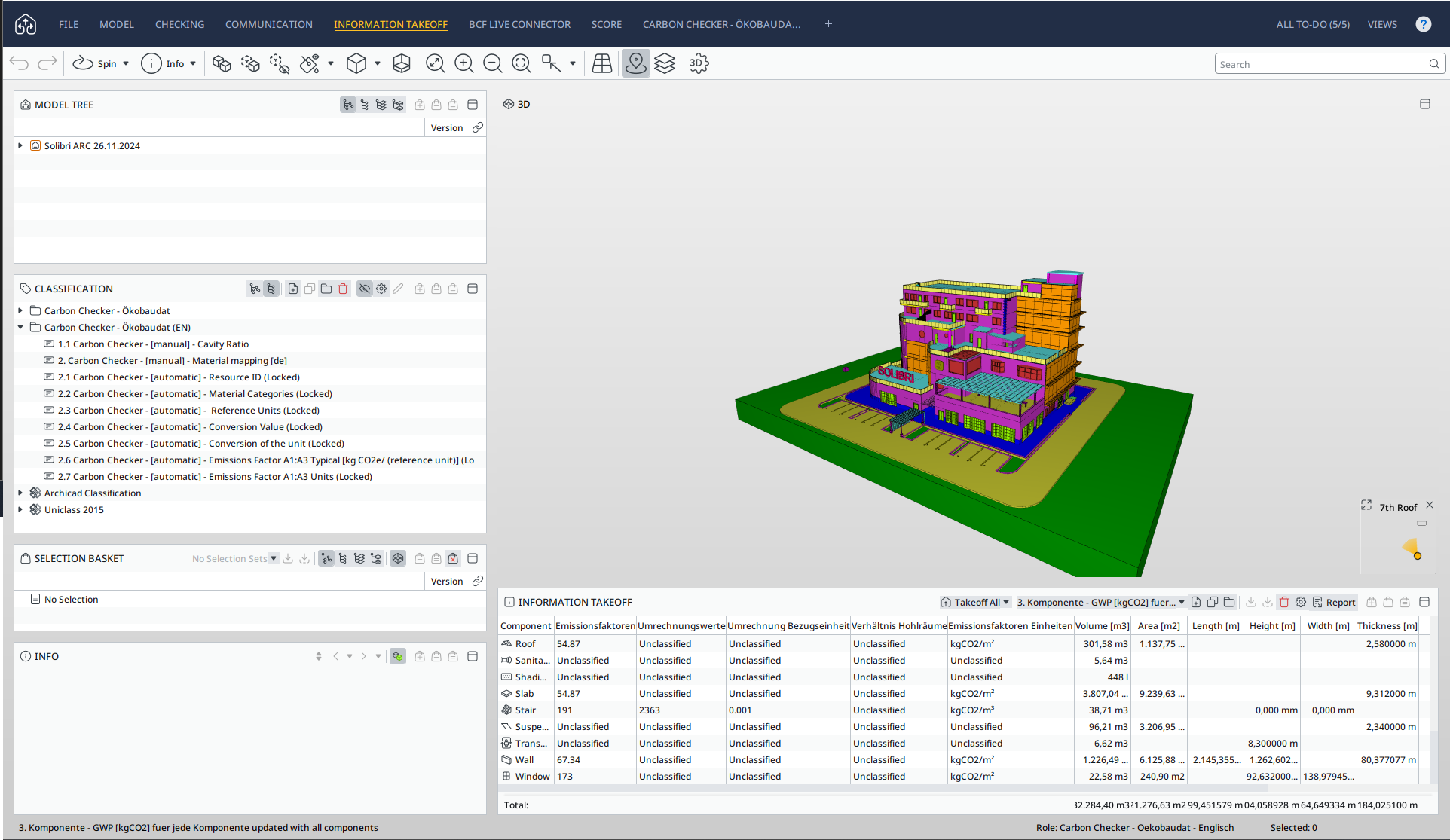

The extension also has its own layout, which includes the Classification, 3D and Information Takeoff views:
To install and set up the extension:
-
Open Solibri Office and login. You may need to restart Solibri after installing the extension.
-
Click File > Roles. Click Open.
-

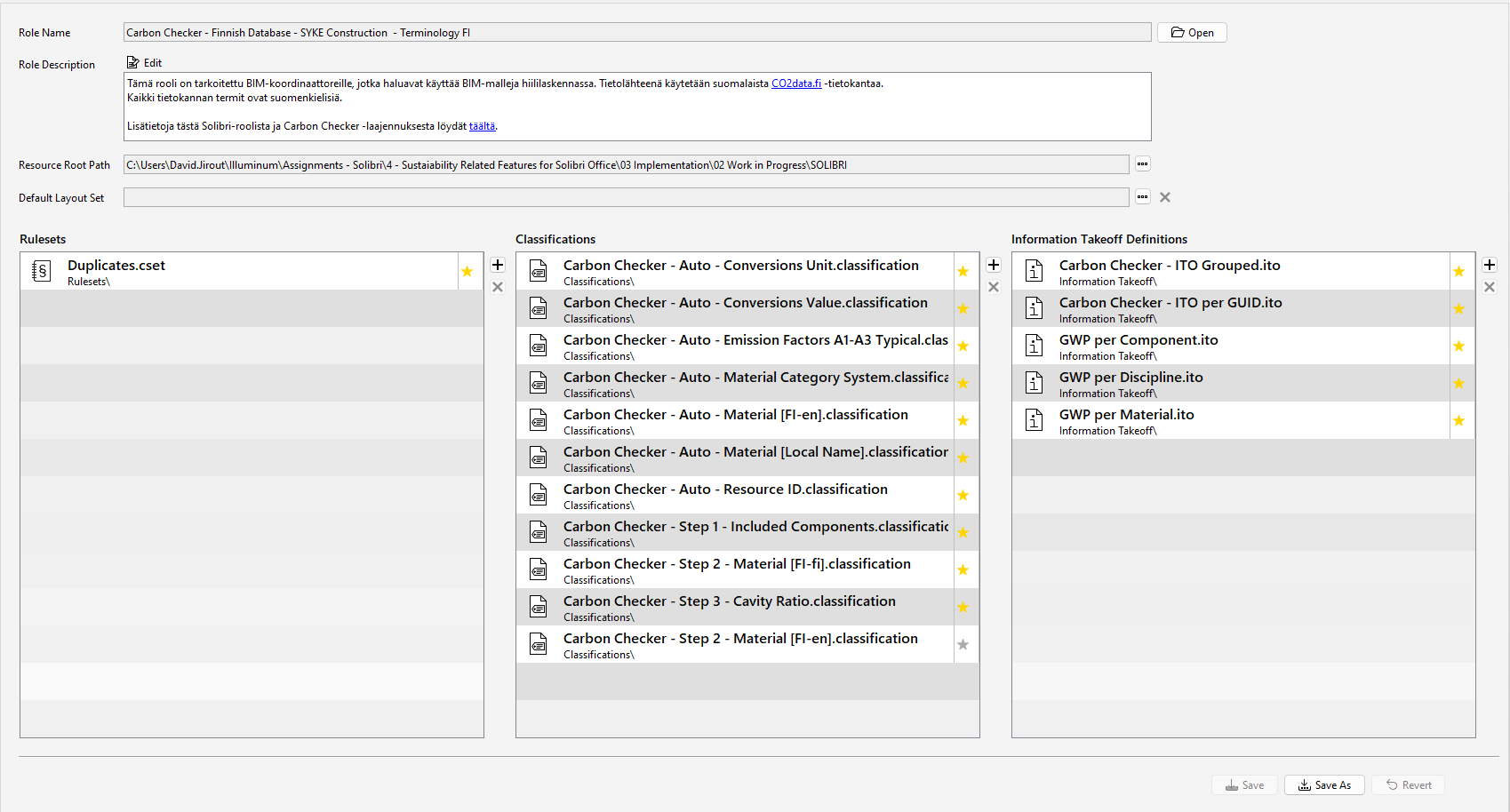

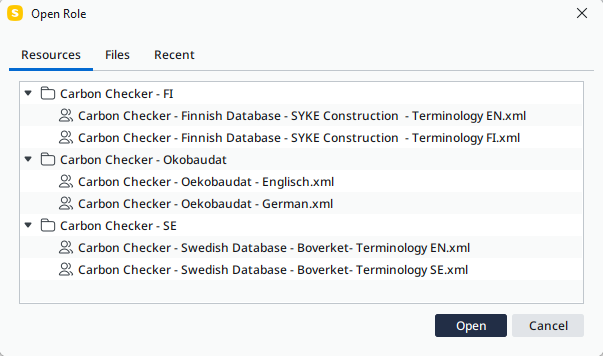

Go to the Resources tab. You can choose from two roles (FI/SE or EN). Select the role and click Open:
-
When you’ve selected a role, all the necessary resources of the Carbon Checker Extension are automatically pre-loaded:
-
The default layout is the Carbon Checker layout and it's automatically selected.
-
Open a model.
Important
It’s important to select the correct units for ITO before any calculations take place. To do this, go to Settings > Units and set the Linear, Area and Volume units to m, m², and m³, respectively. For more information, see here.

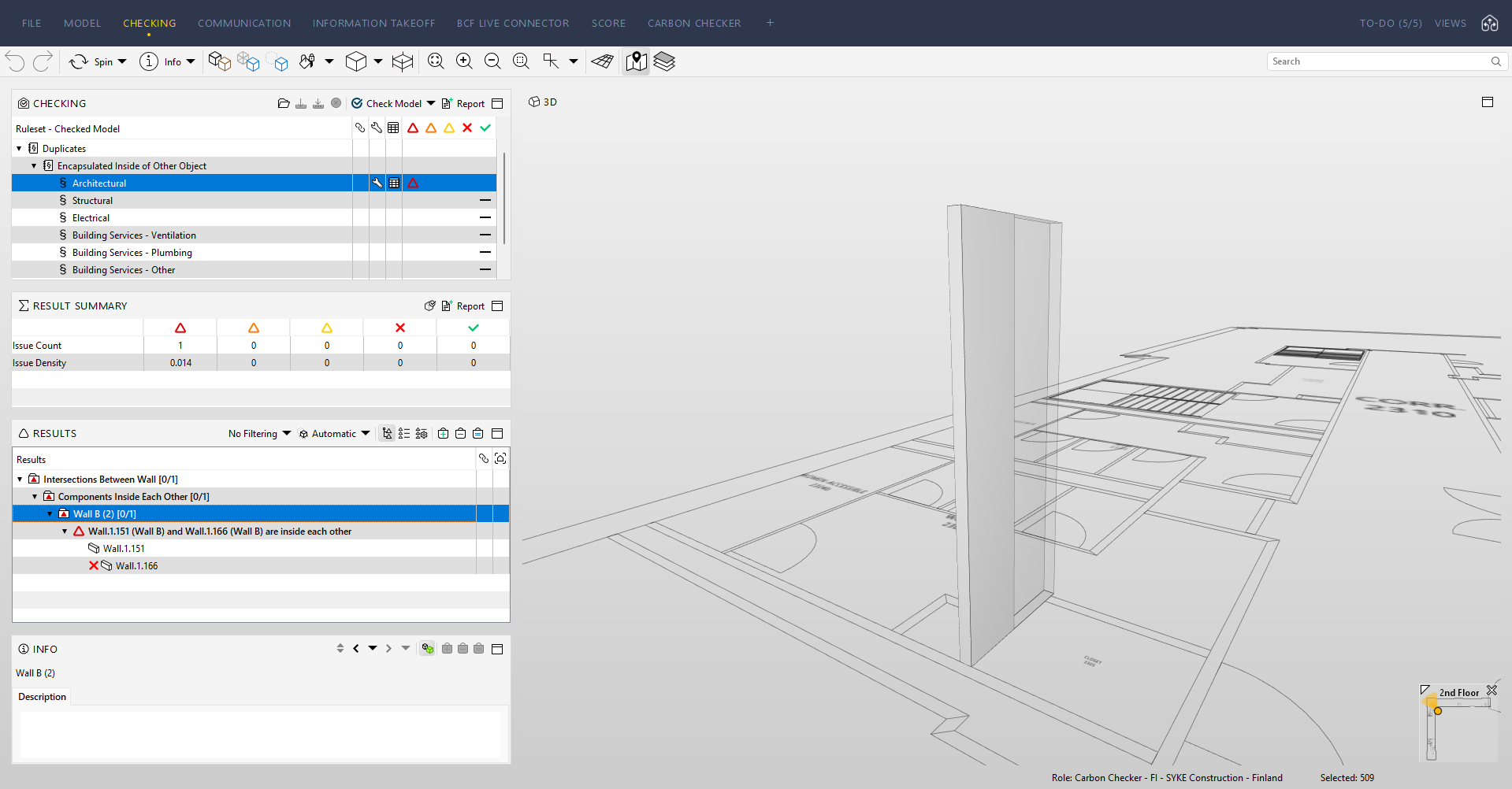

The Carbon Checker extension includes only one ruleset, Duplicates. The ruleset is used for detecting duplicate components, intersections, and overlapping and inner components, which should help you prevent calculating unnecessary emissions. Run the ruleset in the Checking layout. For more information on Checking, see here.
When you've completed the checking and removed the duplicates and intersections, you can move on to three classifications, described below.
The first step in the classification process is defining the components that are to be included in the carbon data calculation.
If the project is an entirely new construction built on a green field, every BIM object is included in the calculation. In other cases, it’s crucial to only include the components of the project that are newly added or changed for the calculation of carbon emissions. For example, if you’re only updating plumbing and ventilation, only those components are a subject to carbon calculation and must be classified as Included in Calculation.
To tell the model which components are new and which ones are already existing ones, you need to classify the included/excluded components. You'll need to consider which parameters or metadata to use to define the new and existing components.
To classify the included and excluded components:
-
Go to the Carbon Checker layout.
-

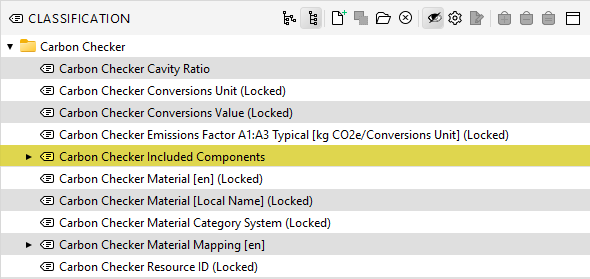

In the Classification view, right-click the Carbon Checker Included Components classification and select Settings:
-
Go to the Classification Rules tab. In the Classification Name column, classify the components that should be Included in calculation and Excluded from calculation according to your knowledge of the project.
-
For new buildings, the components that are newly constructed are set to be Included in calculation.
-
For reconstruction projects, each existing component of the project must be classified as Excluded from calculation, as carbon calculations should be applied to new objects only.
The components that are newly constructed are set to be Included in calculation.

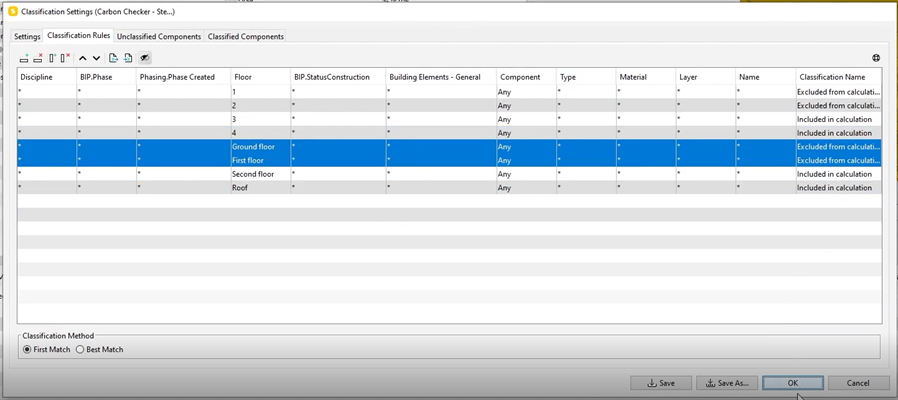

In the example below, we assume that the first two floors are existing objects, thus set to Excluded from calculation while the second floor and the roof are Included in the calculation:
Notice
Components that are part of the Included in calculation class will be passed on to the other classifications and information takeoff templates.
Important
This step varies from project to project. It must be double checked with the designers whether the class selection matches the reality of the project as metadata about the status of object can be missing or wrong in the model.
Tip
You can also do it the other way round - first select and add all new components, and then set the rest of the components to be excluded from the calculation.
-
-

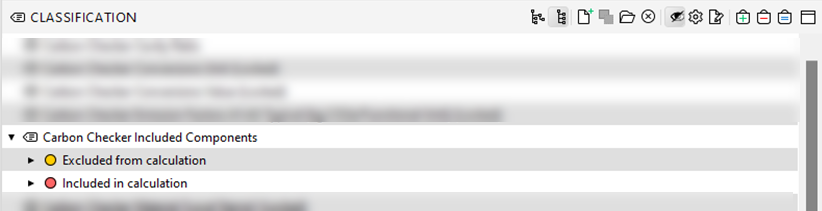

Click OK. The Classification view will now show the classified objects as separate classes – Included in calculation and Excluded from calculation.

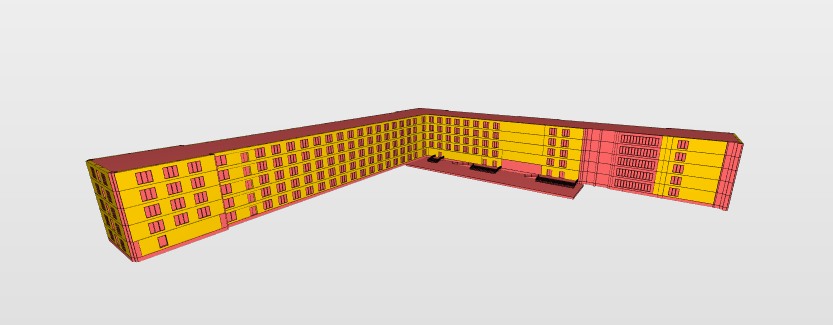

The respective classification are also reflected in the 3D view:
You can now move on to material mapping.
In this step, material names are assigned to the components. The names reflect the original material names from the sources of generic emission factor databases of SYKE Construction in Finland, and Boverket’s climate database in Sweden.
Please note that the metadata in the model may be incorrect, and communication with the designers is important identify all components and assign the right properties.
Tip
The names of the components depend on the role you’ve selected. You can add more classifications for other languages by clicking in the Classification view toolbar.
Tip
We recommend using the first match classification method and consequent sorting of the lines in the classification settings.
To do the material mapping:
-

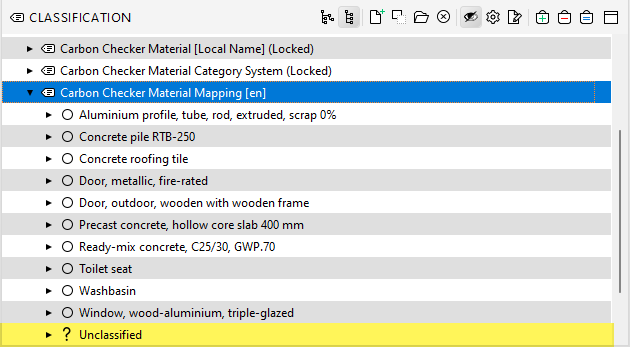

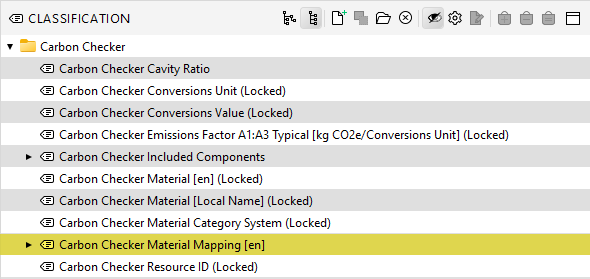

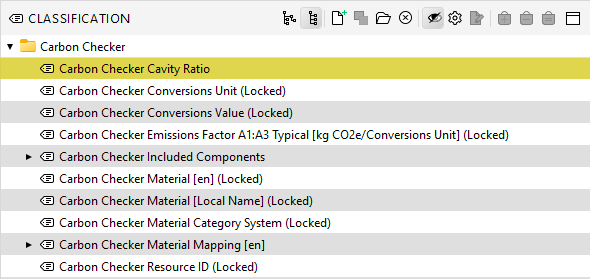

In the Classification view, right-click the Carbon Checker Material Mapping classification and select Settings from the context menu.
-

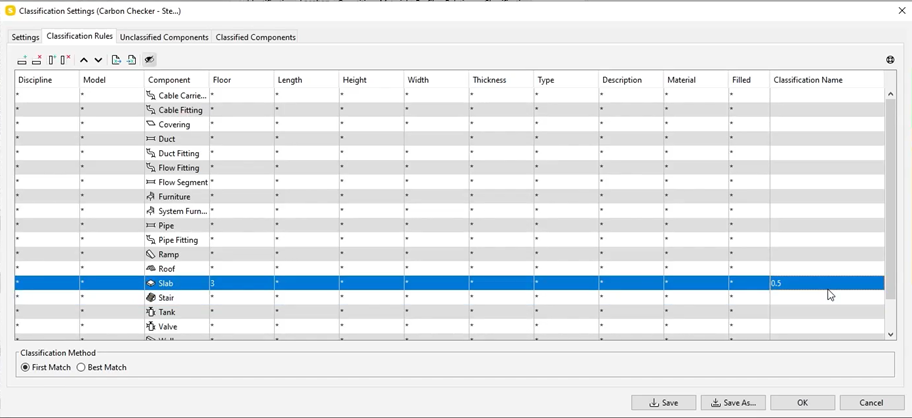

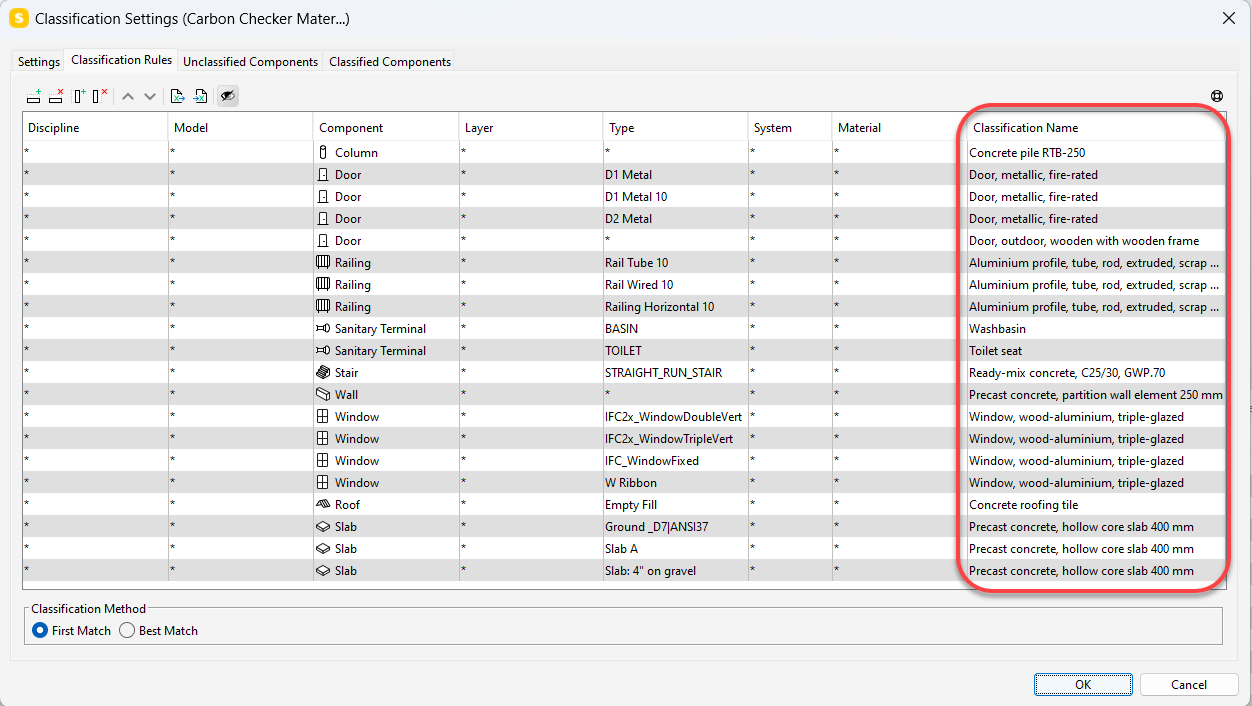

Go to the Classification Rules tab. Assign material names to groups of components using separate classification rules from the drop down menu of the Classification Name column:
Tip
If the material information for a component exists in the model, you can see it in the Info View. This facilitates the assignment between components under the material groups of the database.
-
Click OK.
-
All components must have a Classification Name assigned to them. When all components have their respective material names, the Unclassified category disappears. All the classifications with the text "(locked)" will be automatically populated as a result of the material mapping step.
Once the material mapping is done, you can move on to defining the cavity ratio of components (recommended), or go to information takeoff directly.
Notice
Defining the cavity ratio is not obligatory, but we highly recommend it.
Important
If you edit this classification, note that the information on how hollow the components are likely to be if the Thickness is not specified in the model, must come from the designer.
Especially in early stages of a design, we can expect some hollow components to be modelled as bulky volumes without their thickness defined. These components include, for example, pipes, ducts, their fittings, and furniture. Cavity ratio allows you to specify what share of the volume is going to be air or vacuum (not solid). You'll need to gain this information from the architect/designer.
To get correct carbon calculations, all BIM objects that are hollow, yet were modelled as bulk solids, must have their cavity ratio specified. If no cavity ratio is defined, the object will be assumed to have no cavity, i.e. the object is assumed to be absolutely solid.
The allowed values for cavity ratio are between 0 and 1, including the boarder values. Any decimal number in this span will be passed on to get the Net Solid Volume of the BIM object.
-
Cavity Ratio = 0 means the object is totally solid which is the case by default.
-
Cavity Ratio = 1 means the object is virtual, like a Space or an Opening, i.e. the object has no mass.
-
For example, the cavity ratio for ducts and pipes is often 0.98 or 0.99.
Below are a few examples of calculating the Cavity Ratio of a ventilation duct:
-
Example 1: Rectangular Duct
-
A rectangular ventilation duct has an outer profile of 200x400 mm (Connection Size), and the duct wall Thickness is 1 mm.
-
H = 0.2 m
W = 0.4 m
T = 0.001 m
-
Formula:
-
Cavity Ratio = Inner Cavity Area / Outer Profile Area
-
Cavity Ratio = [ ( H - T*2 ) * ( W - T*2 ) ] / ( H*W )
-
-
Example calculation:
-
Cavity Ratio = [ ( 0.2 - 0.001*2 ) * ( 0.4 - 0.001*2 ) ] / ( 0.2*0.4 )
Cavity Ratio = ( 0.198 * 0.398 ) / 0.2*0.4
Cavity Ratio = 0.98505
-
98.5% of the Brutto Volume is hollow in this example. Only 1.5% of the Brutto Volume is Net Solid Volume and has mass for which we want to calculate the embedded carbon.
-
-
-
Example 2: Round Duct
-
A round duct has an Outer Diameter of 200 mm, and the wall Thickness is 1 mm.
-
D = 0.2 m
T = 0.001 m
-
Formula:
-
Cavity Ratio = Inner Cavity Area / Outer Profile Area
-
Cavity Ratio = [ Pi * (D/2 - T)^2) ] / [ Pi * (D/2)^2 ]
-
-
Example calculation:
-
Cavity Ratio = [ 3.14 * (0.2/2 - 0.001)^2 ] / [ 3.14 * ( 0.2/2 )^2 ]
Cavity Ratio = 0.099^2 / 0.1^2
Cavity Ratio = 0.99
-
99% of the Brutto Volume is hollow in this example. Only 1% of the Brutto Volume is Net Solid Volume and has mass for which we want to calculate the embedded carbon.
-
-
To define the cavity ratio:
All necessary ITO templates were pre-loaded when you selected the role:
Important

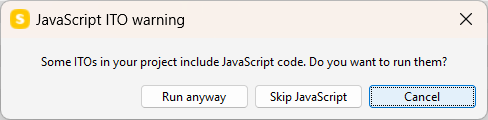

The ITOs in this extension are using JavaScript code, and the ITOs can't be calculated unless you allow Solibri to run the code. You will get the following notification:
To continue and run the JavaScript code, click Run anyway. If you by accident close the dialog or have previously disabled JavaScript, go to General Settings and change the setting.
Tip
GWP stands for Global Warming Potential. A1:A3 means that CO2 is calculated as a sum of 3 lifecycle stages, namely A1 Raw Materia, A2 Transport, and A3 Production, according to the EN15803 standard. This European Standard specifies a method for determining the water vapour permeability (WVP) of porous inorganic materials used for and constituting cultural property. The method may be applied to porous inorganic materials either untreated or subjected to any treatment or ageing.
To calculate emissions:
-

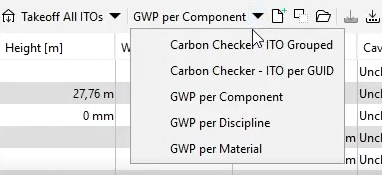

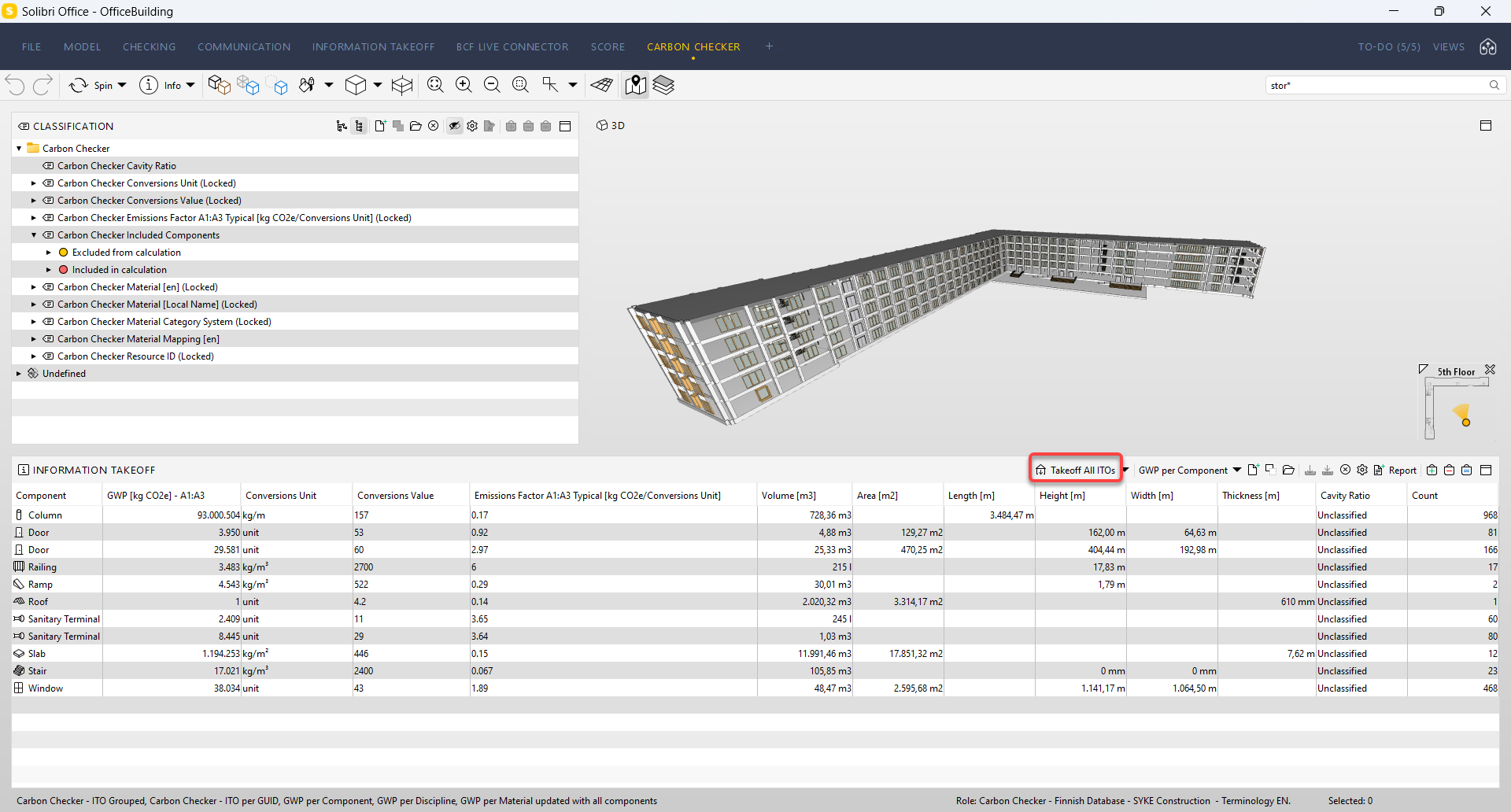

In the Information Takeoff view, click Takeoff All ITOs . The ITO table is populated with data:
-
In the various ITO definitions, emissions are calculated per individual component, or grouped per Component, Discipline and Material. Check out the ITOs for results which will be displayed in the GWP [kg CO2e] – A1:A3 column.
-

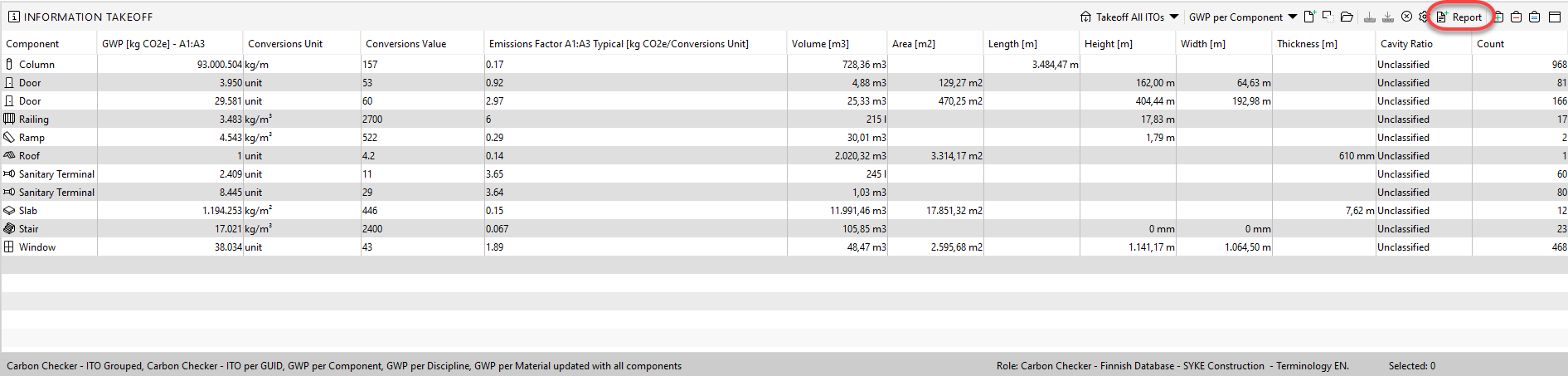

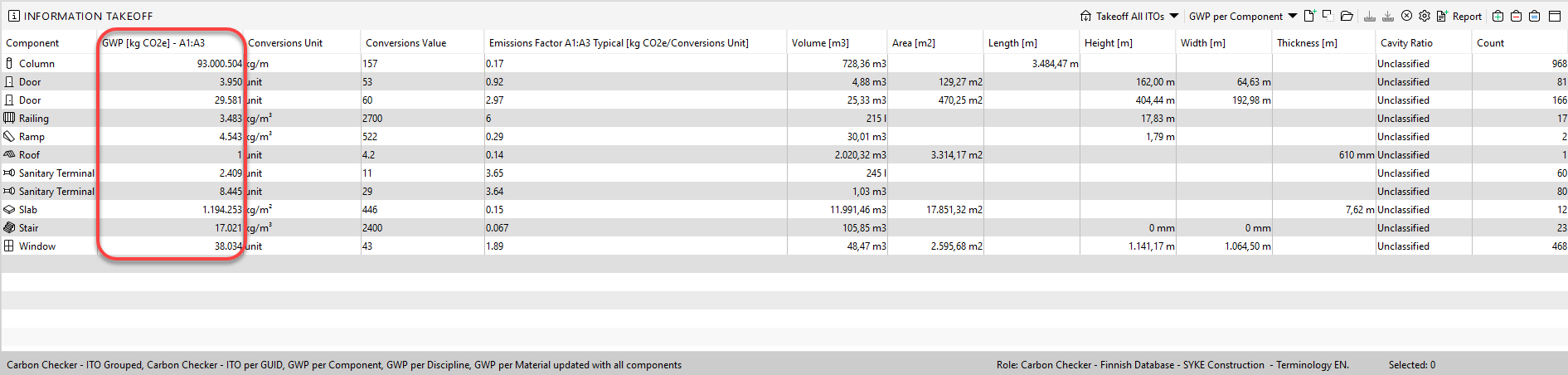

The emissions of each object can now be found in the Information Takeoff view in the GWP [kg CO2e] column, which presents the Global Warming Potential in kg of CO2 equivalent.
You can export the calculated results to an Excel spreadsheet by using templates provided with the extension. To report the ITO data:
-
Click Report in the Information Takeoff view toolbar:
-

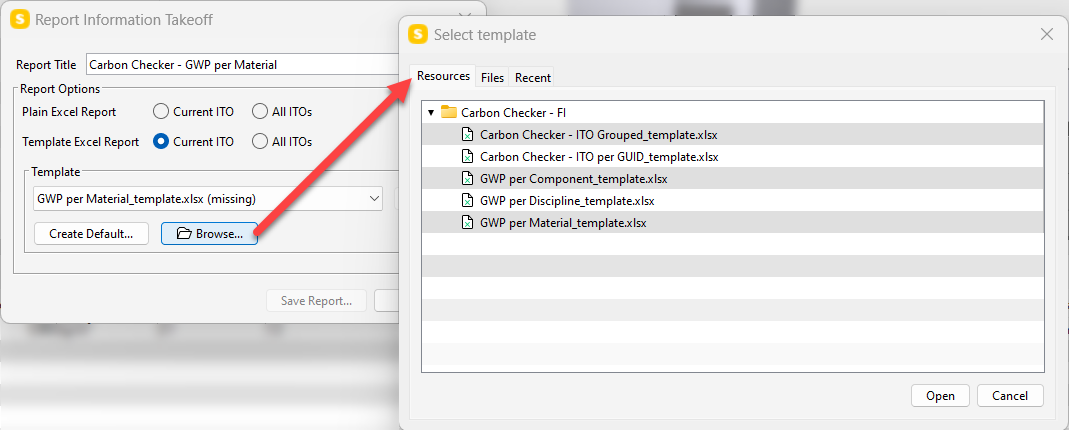

Use Template Excel Report and select Current ITO (the one you have open in the ITO view). Click Browse and go to the Resources tab. Select the correct template and click Open:
-

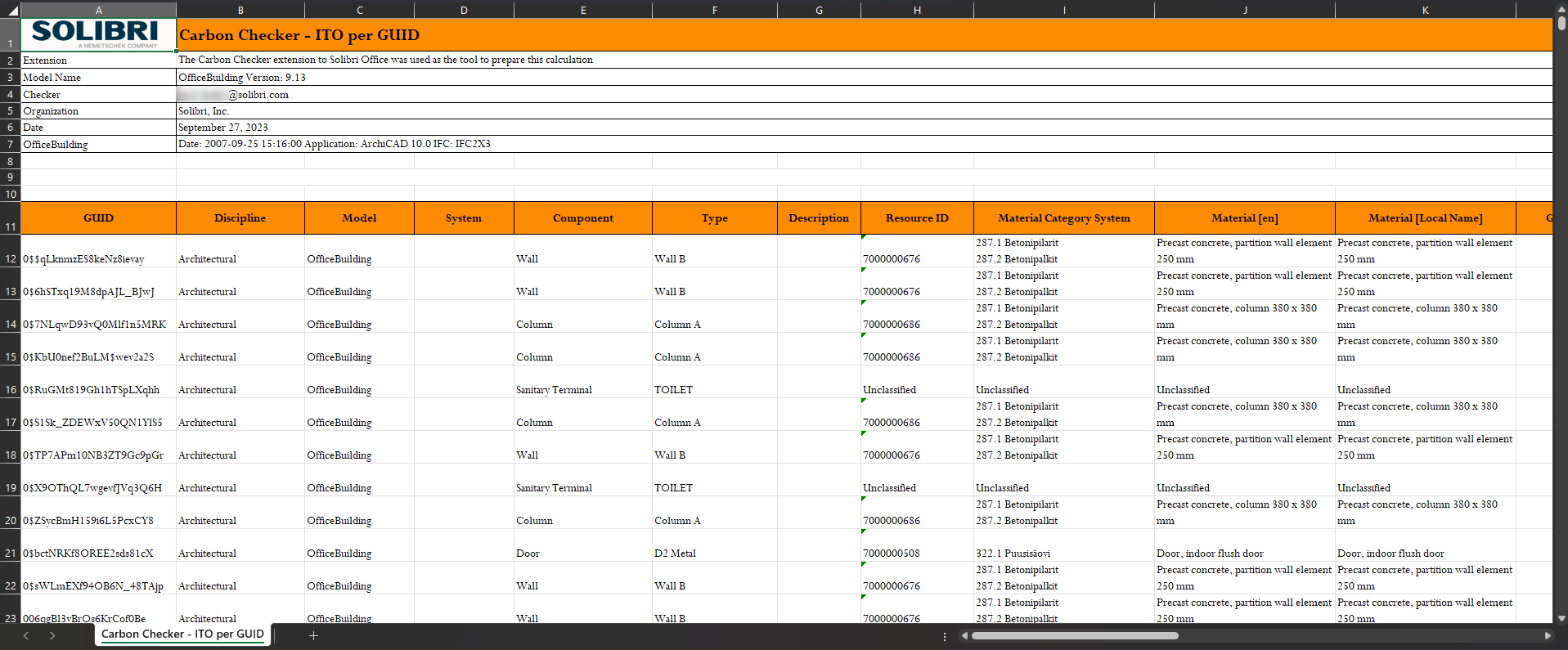

Click Save Report. Specify the folder location and file name. Click Save As. Below is an example of the ITO per GUID report:
