By default, the model is visualized in IFC colors. If you wish to define a more detailed color map, you can use classification colors. You can define the color based on any property, such as IFC Entity, Type or Discipline.
Notice
Only one classification at a time can be used as the default model colors.
To use classification colors:
-
Open a classification.
-
To open Classification settings, click
in the Classification view toolbar.
-

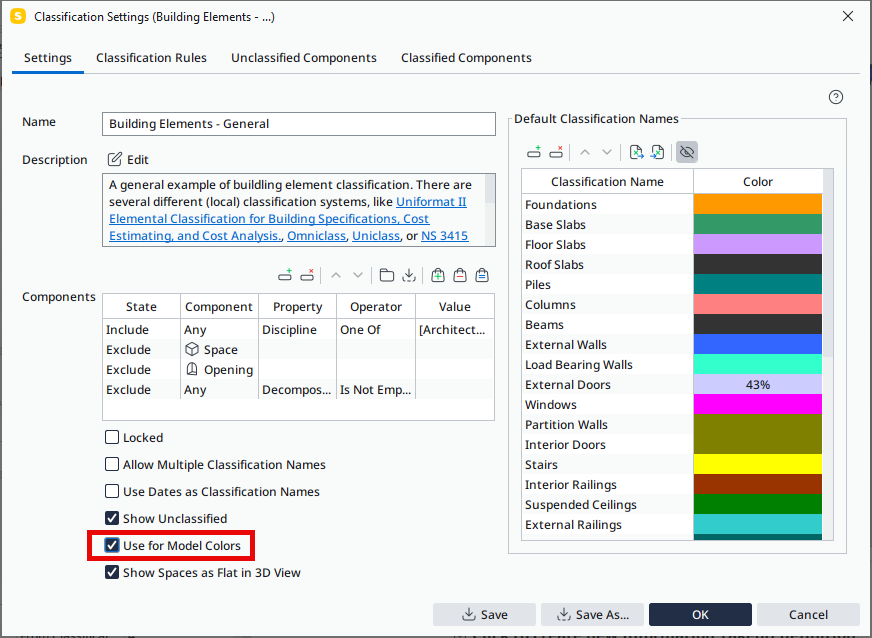

In the Settings tab, mark the checkbox for Use for Model Colors:
-
Click OK.
-
The color of the components in the Model view are now based on the classification color, and this will be retained even after using Show All (
). If no color is defined in the classification for the component, the default IFC colors will be used.

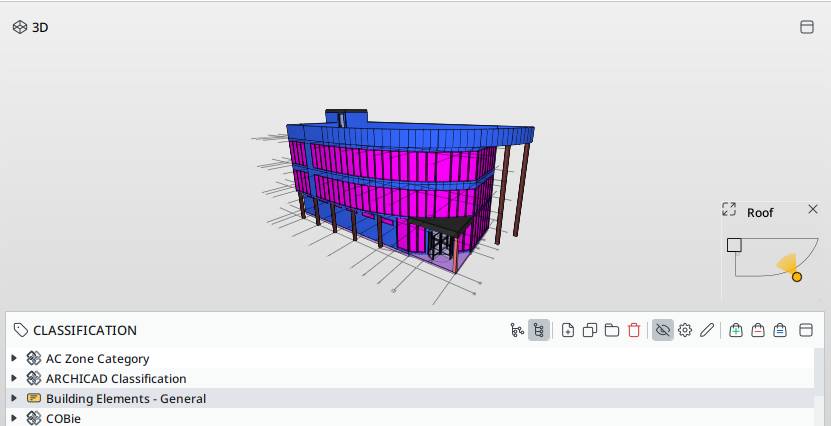

If there is an active color classification, the classification tag will show as yellow and the individual classification types will show their respective classification colors:
Tip
If you have several classifications open, you can change between classifications by marking the checkbox for a different classification. However, you need to switch off the previous choice first, otherwise the mapping of the previous classification might be retained in some places. To switch to a different classification:
