Important
-
Changing to Fixed Viewpoint is available in all Solibri Desktop products.

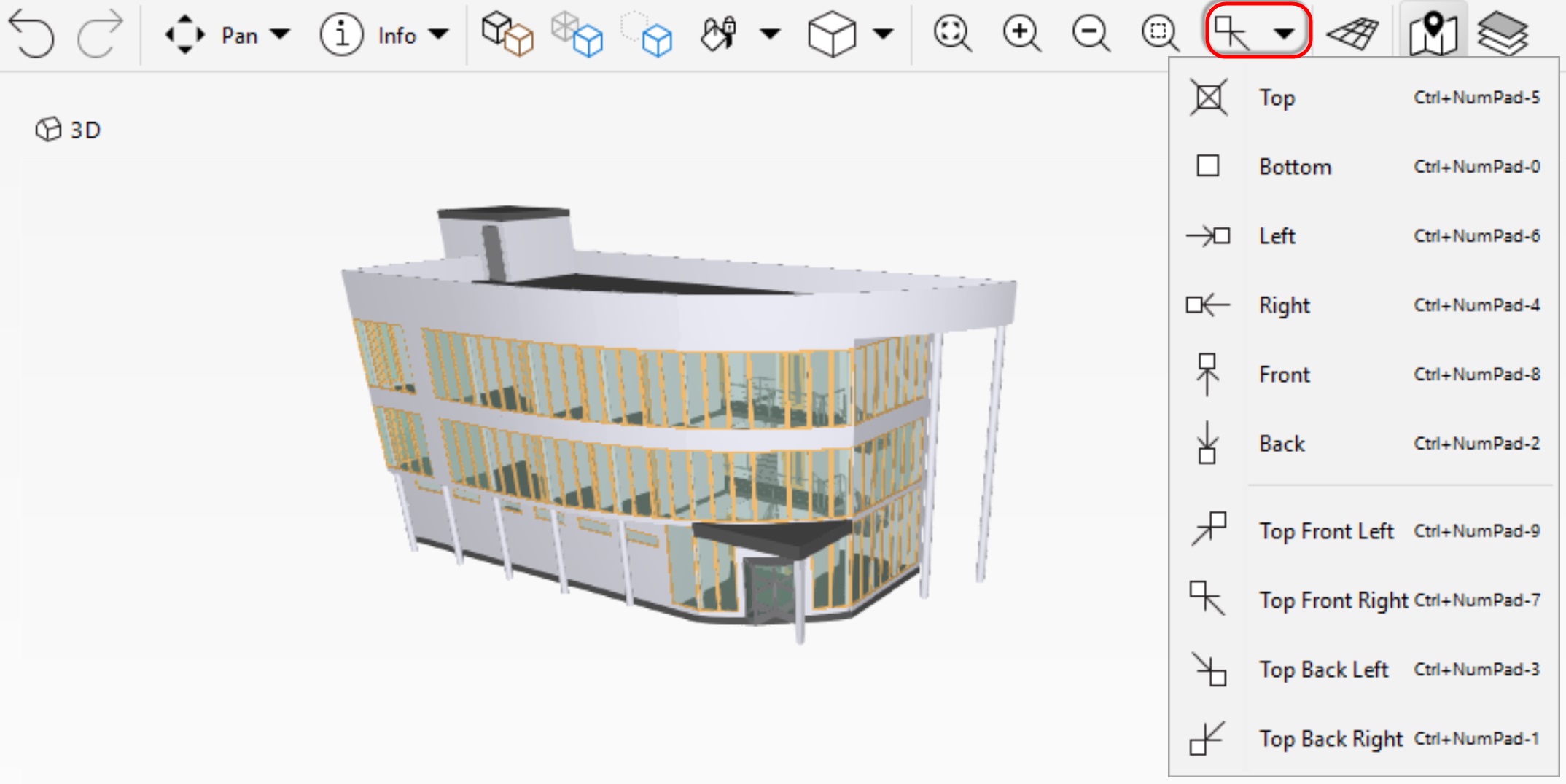

With the Set Viewpoint tools, you can set the viewpoint of the 3D view (the camera) to different positions. You can view the tool options from the main toolbar:
When you set the viewpoint, the camera is moved to that position:
You can view the building:
-
from above
or below
-
from the left
or right
-
from the front
or back
-
from the top front left
or right
:
-
from the top back left
or right
Notice
Please note that these points (other than above) refer to the directions of a model which is orientated with a 0 degrees rotation value around the Z axis.
Align to Surface automatically orients the camera perpendicular to a selected surface or edge. This gives you a straight-on view of any component face or area — useful for inspection, documentation, and precise viewpoint setup.
Notice
Note: Align to Surface is available from Solibri 26.4.
How to align the camera to a surface
-

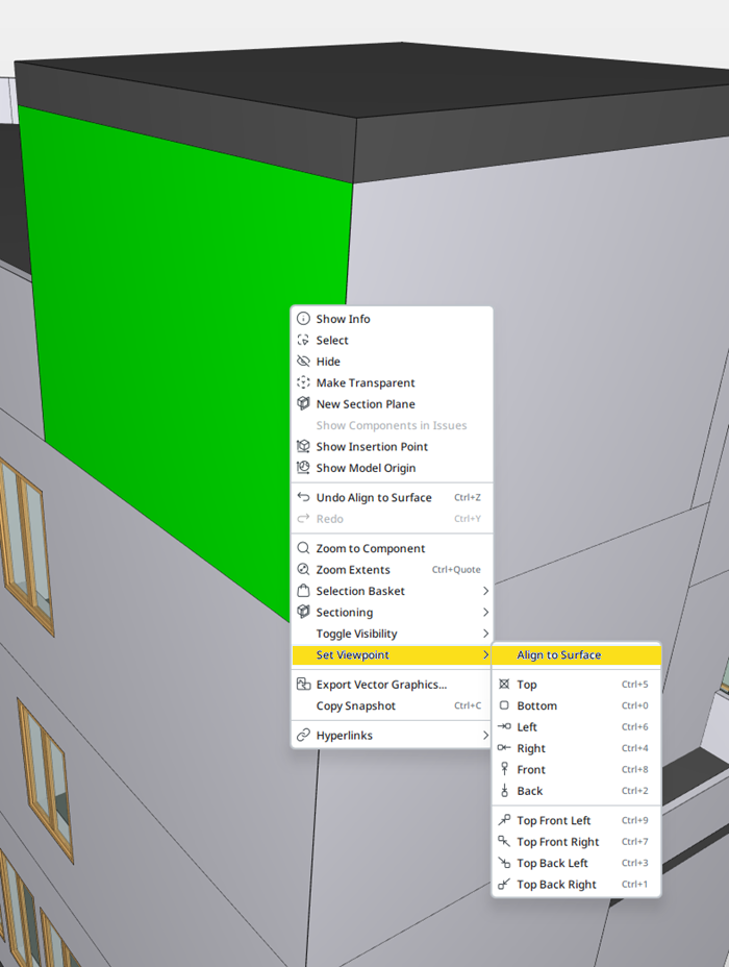

Right-click a surface or edge in the 3D view.
-
Open the Set Viewpoint submenu.
-
Select Align to Surface.
-
The camera rotates to face the selected surface perpendicularly.
-
The selected point stays centered in your view.
The camera transition is animated. You can undo the alignment if needed.
When to use Align to Surface
-
Inspect a wall, slab, or component face from a direct, perpendicular angle.
-
Set up a fixed viewpoint before taking a snapshot or exporting vector graphics.
-
Quickly orient the view to a specific area without manually adjusting the camera.
Tip
Tips for best results
-
Click directly on the surface you want to face. The tool uses the surface normal to calculate the camera direction.
-
You can also align to an edge when a perpendicular edge view is more useful than a face-on view.
-
Combine with fixed viewpoints to save aligned views for reuse in presentations or issue reporting.
