This article describes how you can examine components in the model using the Info tool. The Info tool works in conjunction with the Info view and allows you to interrogate any component in the model. For example, you can use the Info tool to find out which model a component is a part of, what the GUID of the component is, what are its dimensions or any number of property sets exported from the authoring tool.
To view component properties using the Info tool:
-

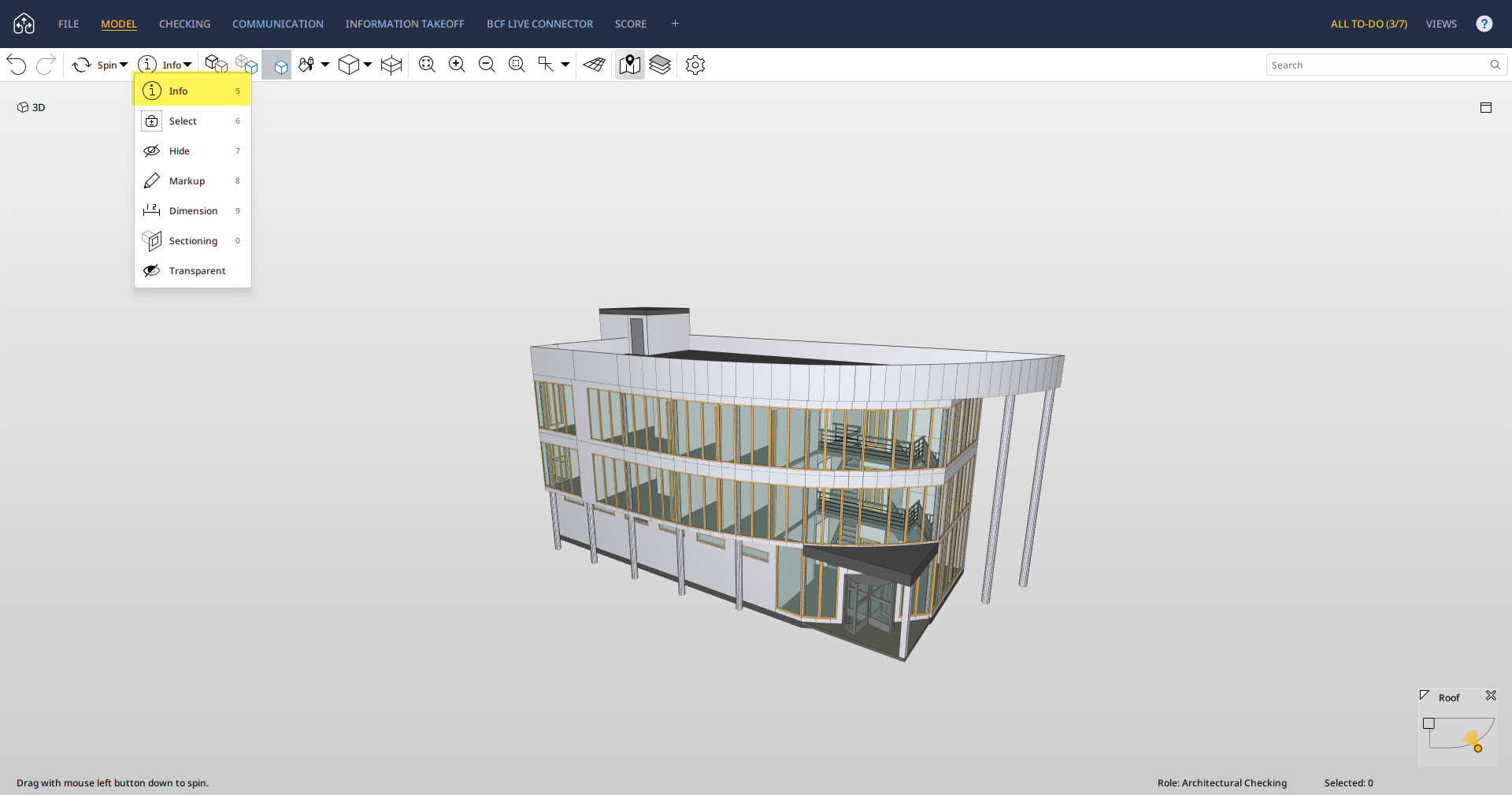

Select the Info tool from the main toolbar:
-

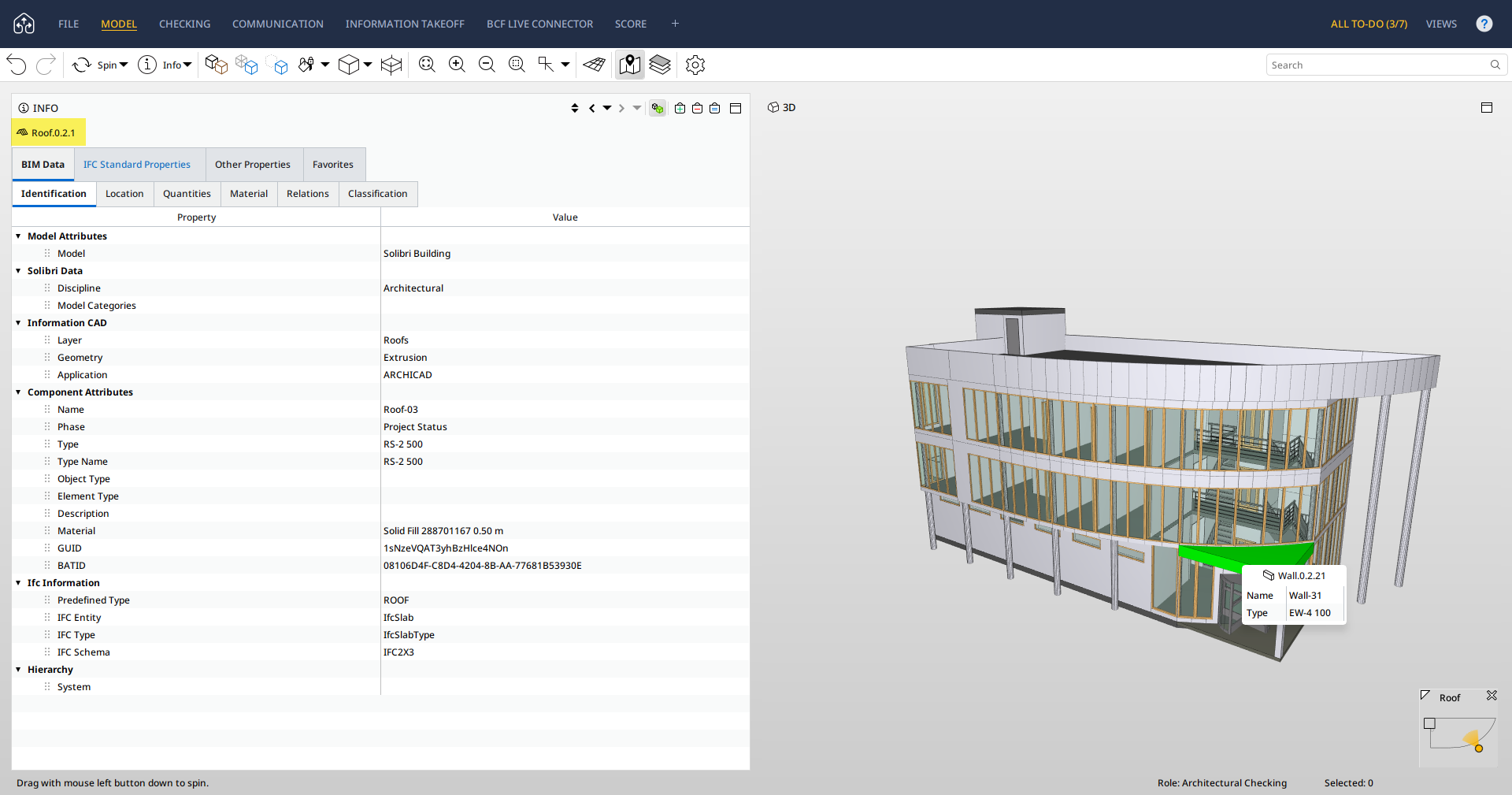

Click a component in the 3D view. The component is highlighted in green, and you can see its properties in the Info view:
Tip
To learn more about the Info view, see the following article: The Info View.
